DAGO torpedo boats (1892)

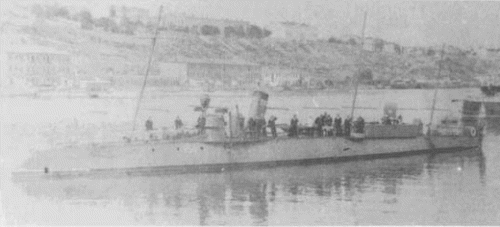

No256

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Даго [Dago], 4.1895- №118 [No118], 1.1910- Перископ [Periskop], 1921- №15 [No15]     Crichton, Abo 1891 1892 1892 dispatch vessel 1.1910, armed steamship 12.1918, gunboat 2.1919, dispatch vessel 11.1919, minesweeper 1921, stricken 8.1923
Котка [Kotka], 4.1895- №256 [No256], 7.1915- Лётчик [Lyotchik], 10.1916- №4 [No4]     Crichton, Abo 1891 1892 1892 dispatch vessel 7.1915, captured by Germany 1.5.1918, re-commissioned 12.1920, stricken 3.1922
Кроншлот [Kronshlot], 4.1895- №123 [No123]     Izhora Wks, Kolpino 1891 1892 1892 stricken 10.1909
Сескар [Seskar], 4.1895- №124 [No124]     Izhora Wks, Kolpino 1891 1892 1892 stricken 10.1909


Technical data


Displacement normal, t

101 - 105

Displacement full, t
Length, m

46.5 - 46.8

Breadth, m

3.89 - 3.94

Draught, m

2.34 - 2.62

No of shafts

1

Machinery

1 VTE, 1 locomotive boiler

Power, h. p.

1000 - 1030

Max speed, kts

16.2 - 19

Fuel, t

coal 15

Endurance, nm(kts)450(10)
Armament

Dago: 2 x 5 - 47/22 Hotchkiss, 1 - 381 TT (bow), 1 x 1 - 381 TT

others: 2 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow), 1 x 1 - 381 TT

Complement

21



Standard scale images


<i>Dago</i> 1892
Dago 1892


Graphics


<i>No256</i>
No256


Project history

Development of Revel design.

Modernizations

1909, No256: - 1 - 381 TT, 1 x 1 - 381 TT; + 1 x 1 - 7.6/94, 1 x 1 - 450 TT

1910, Periskop: - 2 x 5 - 47/22, 1 - 381 TT, 1 x 1 - 381 TT; + 1 x 1 - 75/48 Canet, 1 x 1 - 47/40 Hotchkiss, 1 x 1 - 37/20 Hotchkiss

1915, Lyotchik: - 2 x 5 - 37/17, 1 x 1 - 450 TT; + 2 x 1 - 47/40 Hotchkiss, 2 x 1 - 37/20 Hotchkiss

1921, No15: + mechanical minesweeping gear

Naval service

dispatch vessel No4 was captured by German troops, next time captured by British and French troops in November 1918, transferred them to White Army in April 1919, abandoned in November 1920 and commissioned by Red fleet in December.
