BORGO torpedo boats (1891)
№117
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Борго [Borgo], 1.1898- №207 | Crichton, Abo | 1890 | 1891 | 1891 | collision 1.10.1900 | ||
| Экенес [Ekenes], 4.1895- №117 | Crichton, Abo | 1890 | 1891 | 1891 | stricken 1.1910 |
Technical data
| Displacement normal, t | 106 |
|---|---|
| Displacement full, t | 118 |
| Length, m | 41.7 |
| Breadth, m | 4.47 |
| Draught, m | 2.57 max |
| No of shafts | 1 |
| Machinery | 1 VTE, 1 locomotive boiler |
| Power, h. p. | 1245 |
| Max speed, kts | 20 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 2 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow), 1 x 1 - 381 TT |
| Complement | 21 |
Standard scale images
nearly sister-ship Anapa 1891
Graphics

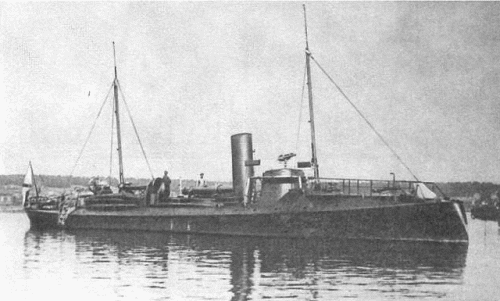

№117
Project history
Usual single-funneled boat of the Schichau type. One TT was fixed in the bows and one in single training mounting on deck.
Modernizations
None.
Naval service
№207 collided 1.10.1900 with torpedo boat №204 in Yellow Sea.
№117
