No212 torpedo boats (1902)





No213 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
№212 [No212]   1657 Crichton, St. Petersburg 2.1900 Autumn 1901 10.1902 minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 (S6)
№213 [No213]   1658 Crichton, St. Petersburg 2.1900 8.11.1901 10.1902 minesweeper 8.1914, dispatch vessel 4.1915, interned by Germany 12.4.1918 - 5.1918, minesweeper 5.1922, TS 11.1923, harbour craft 8.1924


Technical data


Displacement normal, t

204

Displacement full, t
Length, m

53.5

Breadth, m

5.25

Draught, m

1.57

No of shafts

2

Machinery

2 VTE, 4 Yarrow boilers

Power, h. p.

3800

Max speed, kts

24

Fuel, t

coal 60

Endurance, nm(kts)1200(12)
Armament

3 x 1 - 37/20 Hotchkiss, 1 - 381 TT, 2 x 1 - 381 TT

Complement

26



Standard scale images

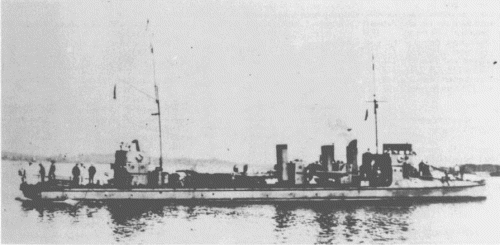

<i>No212</i> 1904
No212 1904


Graphics


<i>No213</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
No213 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Built under drawings of torpedo boat Ussuri. Unlike a prototype they had other hull structure and boilers. Intended for service in the Far East. In connection with beginning of Russian-Japanese war both boats were returned to Baltic. In 1914 both were converted to minesweepers.

Modernizations

1914, both: - 1 - 381 TT, 2 x 1 - 381 TT; + mechanical minesweeping gear

1915, both: - 3 x 1 - 37/20, minesweeping gear; + 2 x 1 - 47/40 Hotchkiss, 2 x 1 - 7.6/94

1919, No213: + mechanical minesweeping gear

Naval service

In 1918 No212 was captured by Finnish nationalists.



Many thanks to Wolfgang Stöhr for additional information on this page.
