No1 small torpedo boats (1906)





MO-312

Ships


Names Builders Completed Losses Transfers Discarding

№1 [No1], 9.1937- ВР-11 [VR-11], 5.1939- №351 [No351], 10.1939- №211 [No211], 7.1941- №511 [No511], 9.1941- №312 [No312], 1.1945- MO-312

№2 [No2], 9.1937- ВР-12 [VR-12], 5.1939- №352 [No352], 10.1939- №212 [No212]

№3 [No3]

№4 [No4], 9.1937- ВР-13 [VR-13], 5.1939- №353 [No353], 10.1939- №213 [No213]

№5 [No5], 1929- Пилот [Pilot], 1.1932- В-3 [V-3], 4.1937- ВС-4 [VS-4], 9.1937- ВР-14 [VR-14], 5.1939- №354 [No354], 10.1939- №214 [No214]

№6 [No6], 1929- Морлёт [Morlyot], 1.1932- В-2 [V-2], 9.1937- ВР-15 [VR-15], 5.1939- №355 [No355], 10.1939- №215 [No215]

№7 [No7], 9.1937- ВР-16 [VR-16], 5.1939- №356 [No356], 10.1939- №216 [No216]

№8 [No8]

№9 [No9], 9.1937- ВР-17 [VR-17], 5.1939- №357 [No357], 10.1939- №217 [No217]

№10 [No10]

Flint, USA: No1

Lazarev Admiralty, Sevastopol: No2 - 10

1906: No1 - 10

1937: VR-13 (ex-No4) (again)

none

none

1924: No3, 8, 10

1929: No4 (first time)

1940: No212 - 217

1/1950: MO-312



Technical data


Displacement normal, t

35

Displacement full, t
Length, m

27.4

Breadth, m

3.70

Draught, m

1.50

No of shafts

2

Machinery

2 gasoline engines

Power, h. p.

600

Max speed, kts

20

Fuel, t

gasoline

Endurance, nm(kts)400(11)
Armament

1 x 1 - 47/40 Hotchkiss, 2 x 1 - 7.6/94, 1 x 1 - 450 TT

Complement

11



Standard scale images


<i>No1</i> 1912
No1 1912


Graphics

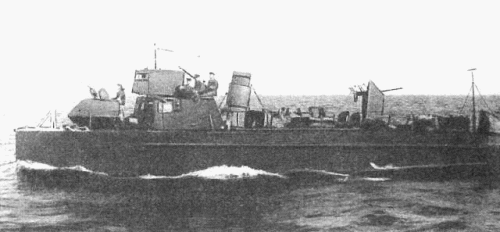

<i>MO-312</i>
MO-312


Project history

First ever motor torpedo boats. These boats were commissioned as motor launches but reclassified as small torpedo boats in October 1907. No5 and No6 served as dispatch vessels from 1929 but all survived boats were reclassified as small submarine chasers in 1937 and as motor launches in 1939. Boat No211 (ex-No1)  was reclassified again as submarine chaser in July 1941.

Modernizations

1937, VR-11: - 1 x 1 - 47/40, 2 x 1 - 7.6/94, 1 x 1 - 450 TT; + 2 x 1 - 45/43 21K, 2 x 1 - 12.7/79, 2 DCR

1943, No312: - 2 x 1 - 45/43, 2 x 1 - 12.7/79; + 2 x 1 - 20/70 Oerlikon Mk IV, 2 x 2 - 12.7/79

Naval service

No significant events.
