KRONSHTADT large ASW ships (project 1134A) (1969 - 1977)

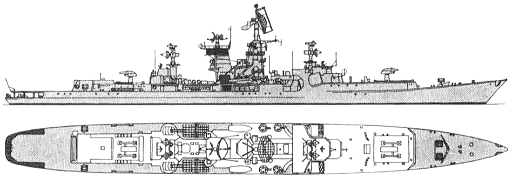

Kronshtadt 1979

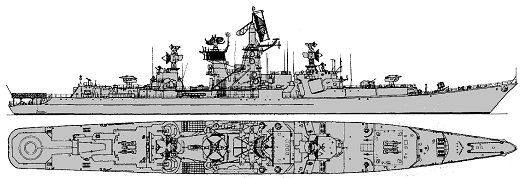

Admiral Makarov 1991

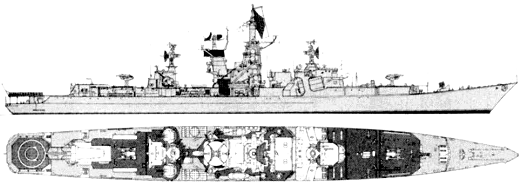

Admiral Isachenkov 1990

Name Yard No Builder Laid down Launched Comm Fate
Кронштадт <Kronshtadt> 721 Zhdanov Yd, Leningrad 30/11/1966 10/2/1968 29/12/1969 stricken 6/1991
Адмирал Исаков <Admiral Isakov> 722 Zhdanov Yd, Leningrad 15/1/1968 22/11/1968 28/12/1970 stricken 6/1993
Адмирал Нахимов <Admiral Nakhimov> 723 Zhdanov Yd, Leningrad 15/1/1968 15/4/1969 29/11/1971 stricken 1/1991
Адмирал Макаров <Admiral Makarov> 724 Zhdanov Yd, Leningrad 23/2/1969 22/1/1970 25/10/1972 stricken 7/1992
Маршал Ворошилов <Marshal Voroshilov>, 1/1991- Хабаровск <Khabarovsk> 725 Zhdanov Yd, Leningrad 20/3/1970 8/10/1970 15/9/1973 stricken 7/1992
Адмирал Октябрьский <Admiral Oktyabrskiy> 726 Zhdanov Yd, Leningrad 2/6/1969 21/5/1971 28/12/1973 stricken 6/1993
Адмирал Исаченков <Admiral Isachenkov> 727 Zhdanov Yd, Leningrad 30/10/1970 28/3/1972 5/11/1974 stricken 7/1992
Маршад Тимошенко <Marshal Timoshenko> 728 Zhdanov Yd, Leningrad 2/11/1972 21/10/1973 25/11/1975 stricken 7/1992
Василий Чапаев <Vasiliy Chapaev> 729 Zhdanov Yd, Leningrad 22/12/1973 28/11/1974 30/11/1976 stricken 6/1993
Адмирал Юмашев <Admiral Yumashev> 730 Zhdanov Yd, Leningrad 17/4/1975 30/9/1976 30/12/1977 stricken 7/1992



Displacement standard, t

5664

Displacement full, t

7535

Length, m

158.9

Breadth, m

16.8

Draught, m

5.84

No of shafts

2

Machinery

TV-12-1 geared steam turbines, 4 KVN-98/64 boilers

Power, h. p.

90000

Max speed, kts

32.5

Fuel, t

oil

Endurance, nm(kts)

4700(18)

Armament

Kronshtadt, Admiral Isakov, Admiral Nakhimov, Admiral Makarov: 2 x 4 URPK-3 Metel' ASuM (8 85R), 2 x 2 M-11 Shtorm SAM (48 V-611(4K60)), 2 x 2 - 57/50 AK-725, 2 x 1 - 45/69 21KM, 2 x 5 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 6 RBU-1000 Smerch-3 ASWRL, 1 helicopter (Ka-25)

Marshal Voroshilov, Admiral Oktyabrskiy, Admiral Isachenkov, Marshal Timoshenko, Vasiliy Chapaev, Admiral Yumashev: 2 x 4 URPK-3 Metel' ASuM (8 85R), 2 x 2 M-11 Shtorm SAM (48 V-611(4K60)), 2 x 2 - 57/50 AK-725, 2 x 1 - 45/69 21KM, 4 x 6 - 30/54 AK-630, 2 x 5 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 6 RBU-1000 Smerch-3 ASWRL, 1 helicopter (Ka-25)

Sensors

Kronshtadt:  MR-600 Voskhod, MR-310A Angara-A, 2x Volga, 2x Grom-M, MR-103 Bars radars, MG-332 Titan-2, 2x MG-7 Braslet , MG-409K sonars, MI-110R radiation wake detector, MI-110K thermal wake detector, 2x Gurzuf, 2x Gurzuf-1, MRP-15-16 Zaliv, 2x MRP-11-12, 2x MRP-13-14 ECM suites, 2x PK-2 decoy launchers, MVU-202 Koren'-1134A CCS

Admiral Isakov, Admiral Nakhimov, Admiral Makarov: MR-600 Voskhod, MR-310A Angara-A, 2x Volga, 2x Grom-M, MR-103 Bars radars, MG-332T Titan-2T, 2x MG-7 Braslet , MG-409K sonars, MI-110R radiation wake detector, MI-110K thermal wake detector, 2x Gurzuf, 2x Gurzuf-1, MRP-15-16 Zaliv, 2x MRP-11-12, 2x MRP-13-14 ECM suites, 2x PK-2 decoy launchers, MVU-202 Koren'-1134A CCS

Marshal Voroshilov, Admiral Oktyabrskiy, Admiral Isachenkov, Marshal Timoshenko, Vasiliy Chapaev, Admiral Yumashev:  MR-600 Voskhod, MR-310A Angara-A, 2x Volga, 2x Grom-M, MR-103 Bars, 2x MR-123 Vympel-A radars, MG-332T Titan-2T, 2x MG-7 Braslet , MG-409K sonars, MI-110R radiation wake detector, MI-110K thermal wake detector, 2x Gurzuf, 2x Gurzuf-1, MRP-15-16 Zaliv, 2x MRP-11-12, 2x MRP-13-14 ECM suites, 2x PK-2 decoy launchers, MVU-202 Koren'-1134A CCS

Complement

385

Ship project history: These were project 1134 redesigned for ASW service while under construction. The first three were to have been further project 1134; the others were to have carried a shorter-range anti-ship missile battery (eight P-50). The shorter-range missile was replaced by an ASW missile, probably adapted from the anti-ship weapon, and a new bow sonar was fitted (the bow was more sharply raked to accommodate it). The surface-to-air missile was the more capable Shtorm, requiring a better 3-D radar (Grom) than the combination of project 1134. Shtorm, the only Soviet naval SAM with no land equivalent, had a substantial anti-ship capability, and would have been welcome in a ship otherwise restricted to ASW ordnance. These ships are designated BPK, large ASW ships.

Modernizations: 1972, all: - 2 x 2 Shtorm SAM; + 2 x 2 M-11 Shtorm-M SAM (48 V-611M)

1970s, all: + Don radar

1980, almost all: - 2 x 2 Shtorm-M SAM; + 2 x 2 Shtorm-N SAM (48 V-611N)

1982, Kronshtadt: - MG-332 Titan sonar; + MG-332T Titan-T sonar

1980s, some ships: + MG-329 Bronza sonar

1985, Admiral Makarov; 1986, Admiral Isachenkov, Admiral Oktyabrskiy; 1990, Admiral Isakov: - 2 x 4 URPK-3 Metel' ASuM, Grom-M radar (fwd); + 2 x 4 URK-5 Rastrub-B SSM/ASuM (8 85RU), Grom-R radar(fwd)

1980s, Admiral Makarov, Vasiliy Chapaev: + Kolos-K75 non-acoustic submarine detecting suite

Naval service: No significant events.

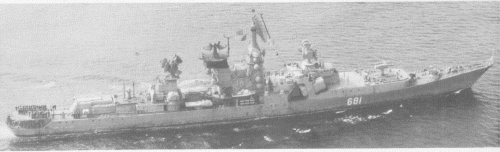

Admiral Nakhimov 1979
