Knyaz' Pozharskiy

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Князь Пожарский [Knyaz' Pozharskiy] (ex-Пожарский [Pozharskiy])			Galerniy Is, St. Petersburg	30.11.1864	12.9.1867	1869	TS 3.1906, hulk 10.1909

Technical data

Displacement normal, t	5138
Displacement full, t
Length, m	83.1 wl
Breadth, m	14.9
Draught, m	7.47 max
No of shafts	1
Machinery	1 HDA, 8 cylindrical boilers
Power, h. p.	2835
Max speed, kts	11.7
Fuel, t	coal 600
Endurance, nm(kts)	1200(10)
Armour, mm	wrought iron; belt: 102, battery: 114
Armament	8 x 1 - 229/14 obr. 1867, 2 x 1 - 152/23 obr. 1867, 4 x 1 - 87/17 4pdr obr. 1867
Complement	495

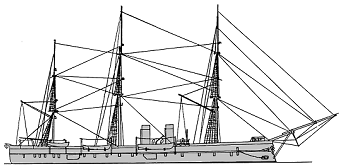

Standard scale images

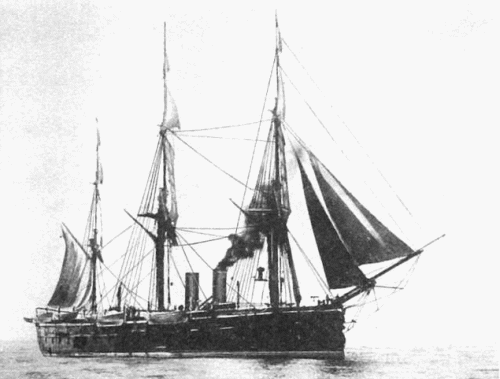

Graphics

Project history

An iron-hulled, wood-sheathed, central battery ship, the hull being recessed fore and aft of the battery to allow some axial fire. The 229mm guns were in a short battery with the 152mm fore and aft on the upper deck. The Knyaz' Pozharskiy was fully rigged and was said to be a bad seaboat.

Ship protection

The 102mm belt was complete on the waterline, and the ram projected 2.4m.

Modernizations

1875: - 8 x 1 - 229/14; + 8 x 1 - 203/19 obr. 1867, 4 x 1 - 44/45 Ängström

1890: - 6 x 1 - 203/19, 4 x 1 - 44/45; + 2 x 1 - 63/17 Baranovski, 2 x 1 - 47/40 Hotchkiss, 6 x 5 - 37/17 Hotchkiss

1901: - 2 x 1 - 203/19, 1 x 1 - 152/23; + 2 x 1 - 47/40 Hotchkiss

Naval service

Reclassified as TS in March 1906, converted to hulk in October 1909, sold for BU in April 1911.
