SOVIET/RUSSIAN NAVY (USSR/RUSSIA)

CRUISERS

GROZNYY missile cruisers (project 58) (1962 - 1965)

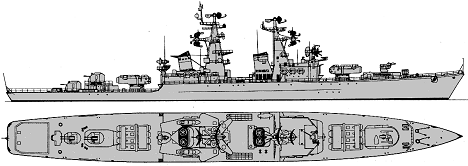

Groznyy 1963

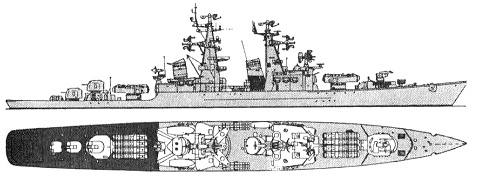

Groznyy 1979

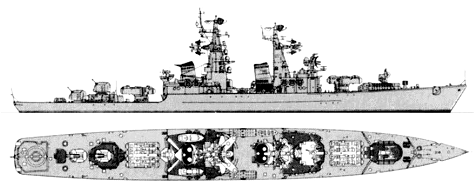

Groznyy 1980

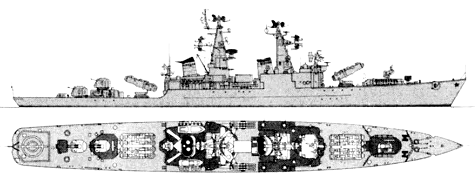

Admiral Golovko 1990

Name Yard No Builder Laid down Launched Comm Fate
Грозный <Groznyy> 780 190 Zhdanov Yd, Leningrad 23/2/1960 26/3/1961 30/12/1962 stricken 6/1991
Адмирал Фокин <Admiral Fokin> (ex-Владивосток <Vladivostok>, ex-Стерегущий <Steregushchiy>) 781 190 Zhdanov Yd, Leningrad 5/10/1960 19/11/1961 28/12/1964 stricken 6/1993
Адмирал Головко <Admiral Golovko> (ex-Доблестный <Doblestnyy>) 782 190 Zhdanov Yd, Leningrad 20/4/1961 18/7/1962 30/12/1964 stricken late 2002
Варяг <Variag> (ex-Сообразительный <Soobrazitelnyy>) 783 190 Zhdanov Yd, Leningrad 13/10/1961 7/4/1963 20/8/1965 stricken 4/1990



Displacement standard, t

4350

Displacement full, t

5400

Length, m

142.7

Breadth, m

16.0

Draught, m

5.01

No of shafts

2

Machinery

TV-12 geared steam turbines, 4 KVN-95/64 boilers

Power, h. p.

90000

Max speed, kts

34.5

Fuel, t

oil

Endurance, nm(kts)

3500(18)

Armament

2 x 4 P-35 SSM (16 4K44), 1 x 2 M-1 Volna SAM (16 V-600(4K90)), 2 x 2 - 76/59 AK-726, 2 x 1 - 45/66 21KM, 2 x 3 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, helicopter deck for 1 Ka-25

Sensors

Groznyy: 2x MR-300 Angara, Don, Yatagan, 2x MR-105 Turel' radars, GS-572 Gerkules-2M sonar, Bizan'-4D, MRP-11-12, 2x MRP-13-14, 2x MRP-15-16 Zaliv, 2x Krab-11, 2x Krab-12, Vzryv ECM suites

others: 2x MR-300 Angara, Don, Yatagan, 2x MR-105 Turel' radars, GS-572 Gerkules-2M sonar, Bizan'-4D, MRP-11-12, 2x MRP-13-14, 2x MRP-15-16 Zaliv, 2x Krab-11, 2x Krab-12 ECM suites

Complement

304

Ship project history: These four ships were Khrushchev's concession to Soviet naval advocates of surface ships. Like the project 61, they were part of a new generation, development of which was ordered in 1956. The TTZ for this class was approved on 6 December 1956. In effect they replaced four Project 82R missile-firing battlecruisers, carrying the same quadruple missile mounts (but with one rather than two reloads per tube). Like other postwar surface combatants, they had the new pressure-fired steam plant. Like the contemporary project 61, they had the new M-1 defensive missile. Initially they were rated as destroyed and reclassified as cruisers 29/9/1962. Of 16 planned units, only four were built.

Modernizations: early 1970s, all: - 2 x 4 P-35 SSM (16 4K44); + 2 x 4 Progress SSM (16 4M44)

1974-1975, all: - 1 x 2 M-1 Volna SAM; + 1 x 2 Volna-P SAM

1975, Groznyy, Admiral Fokin: - 2x MR-300 Angara radars; + 2x MR-310 Angara-A radars

late 1970s, all: + Don radar (2nd), MR-262 Ograda-1 ECM suite

1975, Groznyy; 1980, Admiral Fokin: + 2x Uspekh-U radars

1980-1982, all: - 1 x 2 Volna-P SAM; + 1 x 2 Volna-N SAM (16 V-601M), 4 x 6 - 30/54 AK-630, 2x MR-123 Vympel-A radars

Naval service: No significant events.

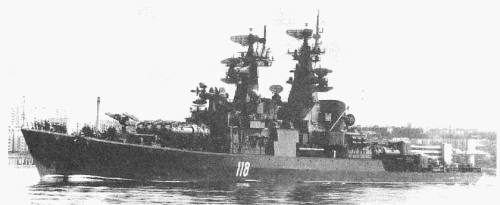

Admiral Golovko 1980s



© Ivan Gogin, 2015
