GENERAL-ADMIRAL armoured frigates (1875 -1877)





General-Admiral 1893

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Генерал-Адмирал [General-Admiral], 10/1909- Нарова [Narova], 9/1924- 25 Октября [25 Oktyabrya]     Semyannikov & Poletika Wks (Nevskiy Wks), St. Petersburg 27/11/1870 8/10/1873 20/9/1875 TS 3/1906, minelayer 10/1909, TS 2/1920, minelayer 7/1924, depot ship 6/1937
Герцог Эдинбургский [Gertsog Edinburgskiy] (ex-Александр Невский [Alexandr Nevskiy]), 10/1909- Онега [Onega]     Karr & McFerson Wks (Baltic Wks), St. Petersburg 27/9/1870 10/9/1875 1877 TS 3/1906, minelayer 10/1909, hulk 9/1914


Technical data


Displacement normal, t

General-Admiral: 5031

Gertsog Edinburgskiy: 4838

Displacement full, t
Length, m

General-Admiral: 87.1 wl 91.0 oa

Gertsog Edinburgskiy: 86.9 oa

Breadth, m

14.6

Draught, m

General-Admiral: 7.01

Gertsog Edinburgskiy: 7.32

No of shafts

1

Machinery

1 VC, 12 rectangular boilers

Power, h. p.

General-Admiral: 4470

Gertsog Edinburgskiy: 5222

Max speed, kts

General-Admiral: 12.3

Gertsog Edinburgskiy: 13.2

Fuel, t

coal 1000

Endurance, nm(kts)

General-Admiral: 2400(8)

Gertsog Edinburgskiy: 2800(9)

Armour, mm

wrought iron; belt: 152 - 127, deck: 25

Armament

6 x 1 - 203/19 obr.1867g, 2 x 1 - 152/23 obr.1867g, 4 x 1 - 87/17 obr.1867g

Complement

490



Standard scale images

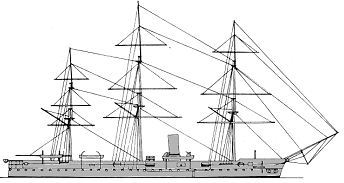

<i>General-Admiral</i> 1880
General-Admiral 1880

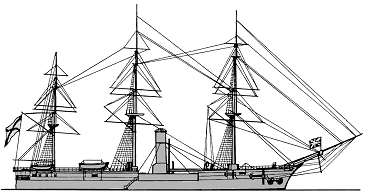

<i>Gertsog Edinburgskiy </i>1892
Gertsog Edinburgskiy 1892

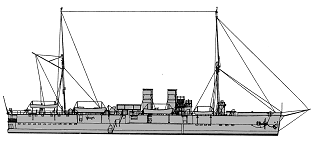

<i>Onega</i> 1914
Onega 1914


Graphics

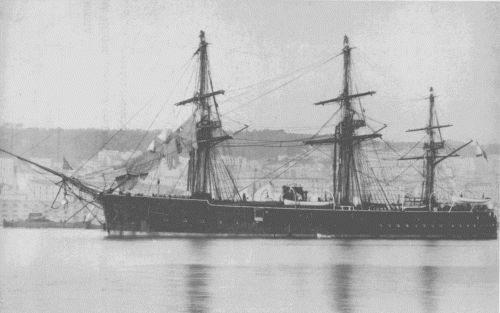

<i>General-Admiral</i>
General-Admiral

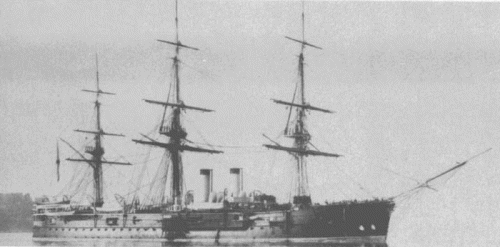

<i>General-Admiral</i> 1893
General-Admiral 1893
<i>General-Admiral </i>1881
General-Admiral 1881
<i>Gertsog Edinburgskiy</i> 1901
Gertsog Edinburgskiy 1901
minelayer <i>Onega</i>
minelayer Onega
minelayer <i>Narova</i>
minelayer Narova


Ship project history


Iron hulled ships with ram, sheathed and coppered and fully rigged. First armoured cruisers in the world. 203mm guns were placed amidships on the upper deck and 152mm guns below the forecastle and poop.

Ship protection


Complete belt was 2.1m high and 152 - 127mm thick. It was covered by flat 25mm deck. 152mm coaming 1.4m high protected engine room hatch.

Modernizations


1886, General-Admiral: boilers were replaced by 3 double-ended cylindrical ones

1889, Gertsog Edinburgskiy: - 6 x 1 - 203/19, 2 x 1 - 152/23, 4 x 1 - 87/17; + 4 x 1 - 203/28 obr.1877g, 5 x 1 - 152/25 obr.1877g, 6 x 1 - 87/21 obr.1877g, 10 x 5 - 37/17 Hotchkiss, 3 - 381 TT (aw, 1 bow, 2 beam)

1890, General-Admiral: - 1 x 1 - 152/23, 4 x 1 - 87/17; + 6 x 1 - 87/21 obr.1877g, 1 - 381 TT (aw)

1892, General-Admiral: 2 additional single-ended cylindrical boilers were added, two fixed funnels replaced the original lowering ones; - 6 x 1 - 203/19; + 3 x 1 - 152/23 obr.1867g, 6 x 1 - 47/40 Hotchkiss, 8 x 1 - 37/20 Hotchkiss

1896, Gertsog Edinburgskiy: boilers were replaced by 4 cylindrical ones, two fixed funnels replaced the original lowering ones.

1910, Narova: - 4 x 1 - 152/23, 6 x 1 - 47/40; + 4 x 1 - 75/48 Canet, 4 x 1 - 7.6/94, 600 mines

1910, Onega: - 4 x 1 - 203/28, 5 x 1 - 152/25, 6 x 1 - 87/21, 10 x 5 - 37/17, 3 - 381 TT; + 4 x 1 - 75/48 Canet, 4 x 1 - 7.6/94, 647 mines

1913, Narova: boilers were replaced by 6 Belleville.

1925, 25 Oktyabrya: - 2 x 1 - 75/48, 2 x 1 - 7.6/94; + 2 x 1 - 47/40 Hotchkiss AA, mine stowage was decreased to 500.

Naval service


Both ships were interned by Germany 12/4/1918 but returned to Russia in May.
