MO-211 small submarine chasers (project OD-200) (1943 - 1945)





MO-328 1946

Ships


Names Builders Commissioned Losses Transfers Discarding

№011 [No011], 12.1943- №0361 [No0361], 5.1944- MO-361

№021 [No021], 12.1943- №0389 [No0389], 5.1944- MO-389

№041 [No041], 12.1943- №0375 [No0375], 5.1944- MO-375

№051 [No051], 12.1943- №0398 [No0398], 5.1944- MO-398

№061 [No061], 12.1943- №0340 [No0340], 5.1944- MO-340, 1.1947- СК-633 [SK-633]

№071 [No071], 12.1943- №0354 [No0354], 5.1944- MO-354

№092 [No092], 12.1943- №0317 [No0317], 5.1944- MO-317

№0112 [No0112], 12.1943- №0336 [No0336], 5.1944- MO-336, 1.1947- СК-632 [SK-632]

№0121 [No0121], 12.1943- №0367 [No0367], 5.1944- MO-367

№0131 [No0131], 12.1943- №0380 [No0380], 5.1944- MO-380

№150

№0355 [No0355], 5.1944- MO-355

№0356 [No0356], 5.1944- MO-356

№0385 [No0385], 5.1944- MO-385

№0393 [No0393], 5.1944- MO-393

MO-211

MO-216 - 219, 12.1956- СК-216 - 219 [SK-216-219]

MO-220

MO-221

MO-224, 12.1956- СК-224 [SK-224]

MO-225, 12.1956- СК-225 [SK-225]

MO-226

MO-229

MO-230

MO-231, 12.1956- СК-227 [SK-227]

MO-232 - 234

MO-235, 12.1956- СК-238 [SK-238]

MO-236, 12.1956- СК-229 [SK-229]

MO-237 - 240

MO-241, 12.1956- СК-220 [SK-220]

MO-242 - 245

MO-246, 12.1956- СК-246 [SK-246]

MO-247

MO-248

MO-249, 12.1956- СК-226 [SK-226]

MO-250

MO-321

MO-322

MO-323, 1.1947- СК-631 [SK-631]

MO-324, 2.1958- УСК-324 [USK-324]

MO-325 - 329

MO-357

MO-358, 3.1955- СК-358 [SK-358]

MO-359

MO-360

MO-362

MO-368 - 371

МО-376 Бузулукский Комсомолец [MO-376 Buzulukskiy Komsomolets]

MO-377 - 379

MO-461

MO-462

MO-547 - 549

MO-550, 1.1947- СК-635 [SK-635]

MO-551, 1.1947- СК-636 [SK-636]

MO-552 - 554

MO-555, 1.1947- СК-637 [SK-637]

MO-556, 1.1947- СК-638 [SK-638]

MO-558, 1.1947- СК-639 [SK-639]

MO-559, 1.1947- СК-640 [SK-640]

MO-563 - 567

640 Yd, Sosnovka: No011, 021, 041, 051, 061, 071, 092, 0112, 0121, 0131, 150, 0355, 0356, 0385, 0393, MO-211, 216-221, 224-226, 229-250, 321-329, 357-362, 368-371, 376-379, 461, 462, 547-556, 558, 559, 563-567

1943: No011, 021, 041, 092, 0112

1944: No051, 061, 071, 0121, 0131, 150, 0355, 0356, 0385, 0393, MO-321 - 329, 357 - 360, 362, 368 - 371, MO-376 Buzulukskiy Komsomolets, MO-377 - 379, 461, 462, 547 - 556, 558, 559, 564 - 567

1945: MO-211, 216 - 221, 224 - 226, 229 - 250

MO-376 Buzulukskiy Komsomolets (13.5.1944)

Poland, 1946: MO-325 - 329, 368 - 371, 552, 553 (S-51 Bezwzgledny, S-52 Bystry, S-53 Dziarsky, S-54 Dzielny, S-55 Karny, S-56 Niedoscigly, S-61 Nieuchwytry, S-62 Odvazny, S-63 Smialy, S-64 Spravny, S-65 Szybki)

Bulgaria, 1947: MO-549, 564, 566; 1951: MO-230, 232

North Korea, 1954: MO-233, 234

1949: MO-211, 248, 360, 377, 547, 548, 563, 361, 375, 367, 380, 385, SK-632, No150

1950: MO-242, 244, 247, 362, 378, 379, 554, 565, 389, 354, 317, 355, 393

1952: MO-398, SK-633

1953: MO-461, 462

1954: MO-250, 321

1955: MO-237, 322, 357, 359, 567, 356, SK-637, 638

1956: MO-220, 221, 226, 229, 238 - 240, 243, 245, SK-631, 635, 640

1958: SK-216 - 219, 224, 225, 227, 238, 229, 220, 246, 226, 358, 636, 639

1959: USK-324



Technical data


Displacement standard, t

44

Displacement full, t

47

Length, m

23.4

Breadth, m

4.00

Draught, m

1.75

No of shafts

2

Machinery

2 Packard petrol engines / 2 Osco-Ford petrol engines for cruising

Power, h. p.

2400 / 170

Max speed, kts

24 / 6

Fuel, t

petrol 5

Endurance, nm(kts)1600(6)
Armament

1 x 1 - 37/63 70K, 2 x 1 - 12.7/79 or 2 x 2 - 12.7/79, 2 DCR (12)

Electronic equipmentTamir-1 sonar
Complement

21



Standard scale images


<i>MO-211</i> 1945
MO-211 1945


Graphics

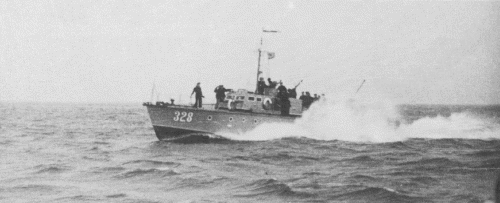

<i>MO-328</i> 1946
MO-328 1946


Project history

The unified boat of project 200 was designed for building in MTB (type TD-200) and small submarine chaser (type OD-200) variants for replacement of types D-3 and MO-4 boats. There were variants with wooden and steel hull. Chasers of type OD-200 with wooden hull at a little bit bigger dimensions, than at D-3 were more technological: building of one boat held 27 days instead of 120. They were equipped with two Paccard motors received on lend-lease, and two automobile cruising motors.

Modernizations

None.

Naval service

No significant events.
