"N type" river armoured motor boats (No1) (1916 - 1917)







Ships


Names Builders Commissioned Losses Transfers Discarding

№1 [No1], 11.1920- №7 [No7], 1.1921- СК-7 [SK-7], 5.1921- №1 [No1], 1928- Н-1 [N-1], 8.1934- БК-110 [BK-110], 4.1937- №81 [No81], 2.1944- БК-81 [BK-81]

№2 [No2], 11.1920- №8 [No8], 1.1921- СК-8 [SK-8], 5.1921- №2 [No2], 1928- Н-2 [N-2], 8.1934- БК-111 [BK-111], 4.1937- №82 [No82]

№3 [No3], 11.1920- №9 [No9], 1.1921- СК-9 [SK-9], 5.1921- №3 [No3], 1928- Н-3 [N-3], 8.1934- БК-112 [BK-112], 4.1937- №83 [No83]

№4 [No4], 11.1920- №10 [No10], 1.1921- СК-10 [SK-10], 5.1921- №4 [No4], 1928- Н-4 [N-4], 8.1934- БК-113 [BK-113], 4.1937- №84 [No84], 2.1944- БК-84 [BK-84]

№5 [No5], 11.1920- №11 [No11], 1.1921- СК-11 [SK-11]

№6 [No6], 11.1920- №12 [No12], 1.1921- СК-12 [SK-12]

№7 [No7], 7.1920- №19 [No19], 11.1920- №30 [No30], 1.1921- СК-29 [SK-29]

№8 [No8]

№9 [No9], 11.1920- №13 [No13], 1.1921- СК-13 [SK-13]

№10 [No10], 11.1920- №14 [No14], 1.1921- СК-14 [SK-14]

№11 [No11], 11.1920- №15 [No15], 1.1921- СК-15 [SK-15]

№12 [No12], 11.1920- №16 [No16], 1.1921- СК-16 [SK-16]

№13 [No13], 11.1920- №17 [No17], 1.1921- СК-17 [SK-17]

№14 [No14]

K. Revenskiy, Odessa: No1 - 14

Vega Bureau, Borgo: 4 boats

1916 - 1917: No1-14

No8 (1918), No14 (1918)

boats built in Borgo: possibly incomplete

none

1921: SK-15 - 17

1923: SK-12

1924: SK-11, 29, 14

1925: SK-13

1940: No82, 83

1945: BK-81, 84



Technical data


Displacement normal, t

18

Displacement full, t
Length, m

15.2

Breadth, m

3.05

Draught, m

0.70

No of shafts

2

Machinery

2 Stirling gasoline engines

Power, h. p.

100

Max speed, kts

11.5

Fuel, t

petrol 1.9

Endurance, nm(kts)640(6)
Armour, mmbelt: 7, deck: 5, turret: 7, CT: 7
Armament

1 x 1 - 76/16 obr.1909g mountain guns, 2 x 1 - 7.6/94

Complement8


Standard scale images

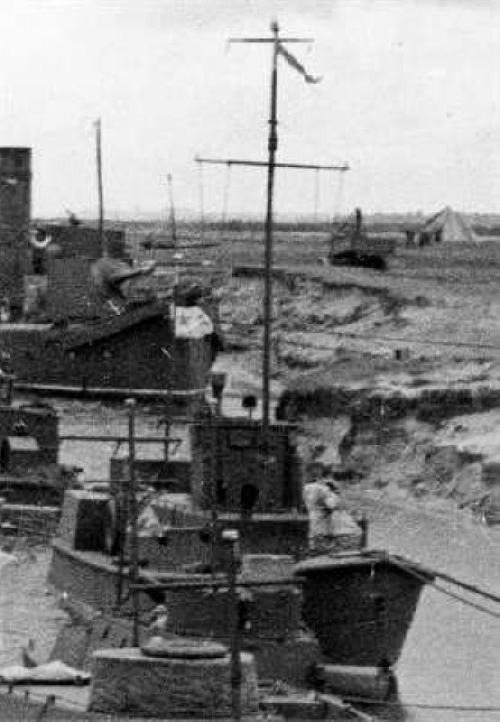

<i>No81</i> 1940
No81 1940


Graphics





Project history

River armoured boats-scouts ordered in 1915 by War Department.

Ship protection

Bullet-proof protection.

Modernizations

None.

Naval service

No significant events.
