BK-166 armoured motor gunboat (project 191) (1946)







Ships


Names Builders Commissioned Losses Transfers Discarding

БК-166 [BK-166], 5/1966 - AK-166

344 Yd, Perm: BK-166

10/1946: BK-166

none

none

1970s: AK-166



Technical data


Displacement standard, t53
Displacement full, t

57

Length, m

25.9

Breadth, m

4.30

Draught, m

0.70

No of shafts

2

Machinery

2 V-2 diesels

Power, h. p.

1200

Max speed, kts

16

Fuel, t

diesel oil

Endurance, nm(kts)530(10)
Armour, mmbelt: 14, deck: 10, turret: 30 - 20, CT: 14 - 10
Armament

1 x 1 - 85/55 MK-85, 2 x 2 - 12.7/79

Complement14


Standard scale images

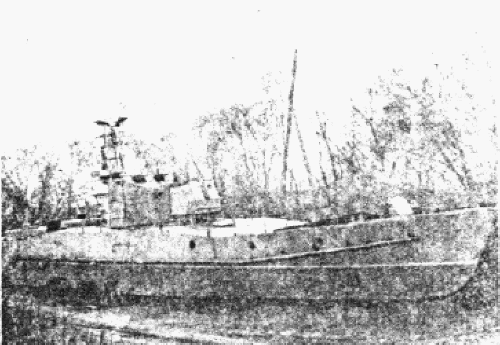

<i>BK-166</i> 1946
BK-166 1946


Graphics





Ship project history


hip project history: Prototype of new post-war series with new gun, diesels and strengthened armour.

Ship protection


Citadel and turret were protected by splinter-proof armour.

Modernizations


None.

Naval service


No significant events.
