33! PSKR-900 border guard boats (projects 10410, 10410B) (1988 -)





Almaz 2003

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
ПСКР-900 [PSKR-900], 2000- Корсаков [Korsakov] 118 401 Vladivostok SYd     4.1988 in service (2019) Project 10410
ПСКР-901 [PSKR-901]   402 Vladivostok SYd     1989 foundered 7.11.1995 Project 10410
ПСКР-903 [PSKR-903], 1997- Холмск [Kholmsk] 088 403 Vladivostok SYd     1989 in service (2019) Project 10410
ПСКР-904 [PSKR-904]   404 Vladivostok SYd     9.4.1989 stricken 2017 Project 10410
ПСКР-907 [PSKR-907] 104 405 Vladivostok SYd     1990 in service (2019) Project 10410
ПСКР-908 [PSKR-908]   406 Vladivostok SYd     30.5.1991 stricken 2018 Project 10410
ПСКР-914 [PSKR-914] 199 407 Vladivostok SYd     1991 in service (2019) Project 10410
ПСКР-915 [PSKR-915], 6.2000- Невельск [Nevelsk]   408 Vladivostok SYd     1992 stricken 2017 Project 10410
ПСКР-918 [PSKR-918], 1.2000- Южно-Сахалинск [Yuzhno-Sakhalinsk] 026 409 Vladivostok SYd     22.10.1994 in service (2019) Project 10410
ПСКР-922 [PSKR-922] 076 410 Vladivostok SYd 1993   12.6.2000 in service (2019) Project 10410
ПСКР-923 [PSKR-923], later- Кондор [Kondor] 126 411 Vladivostok SYd 1995 27.9.2003 2003 in service (2019) Project 10410
ПСКР-926 [PSKR-926], later- Ворон [Voron] 069 412 Vladivostok SYd 2001 15.7.2006 15.5.2007 in service (2019) Project 10410
ПСКР-902 [PSKR-902], 1997- Ставрополь [Stavropol'] 100 801 Yaroslavl SYd     1.4.1990 in service (2019) Project 10410
ПСКР-905 [PSKR-905], 1.2004- Расул Гамзатов [Rasul Gamzatov] 556 802 Yaroslavl SYd     1991 in service (2019) Project 10410
ПСКР-906 [PSKR-906], 1996- Сочи [Sochi] 110 803 Yaroslavl SYd   11.4.1991 8.2.1992 in service (2019) Project 10410
ПСКР-910 [PSKR-910], 1995- Бриз [Briz] 175 804 Yaroslavl SYd     10.12.1992 in service (2019) Project 10410
ПСКР-911 [PSKR-911], 1995- Рубин [Rubin], 1996- Подольск [Podolsk] 017 805 Yaroslavl SYd     25.3.1993 in service (2019) Project 10410
ПСКР-916 [PSKR-916] 102 806 Yaroslavl SYd     1994 in service (2019) Project 10410
ПСКР-928 [PSKR-928], 5.2014 - Василий Грязев [Vasiliy Griazev] 017 807 Yaroslavl SYd 12.9.1998 25.5.2007 15.12.2007 in service (2019) Project 10410
ПСКР-909 [PSKR-909], 1996- Выборг [Vyborg]   301 Almaz, St. Petersburg 1989 9.1991 31.7.1992 stricken 2016 Project 10410
ПСКР-912 [PSKR-912], 11.2001- Анатолий Королёв [Anatoliy Koroliov] 137 302 Almaz, St. Petersburg     11.1992 in service (2019) Project 10410

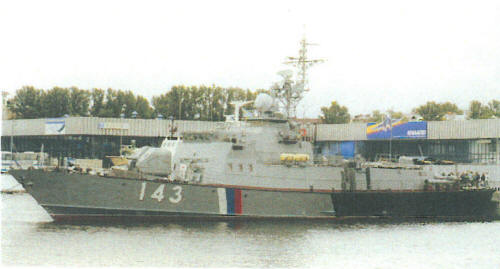

ПСКР-913 [PSKR-913], 5.1998- Алмаз [Almaz] 143 303 Almaz, St. Petersburg     15.10.1993 in service (2019) Project 10410
ПСКР-917 [PSKR-917], 1995- Нептун [Neptun]   304 Almaz, St. Petersburg     28.7.1994 stricken 2016 Project 10410
ПСКР-919 [PSKR-919], 6.2000- Дербент [Derbent] 106 305 Almaz, St. Petersburg     1995 in service (2019) Project 10410
ПСКР-920 [PSKR-920], 1995- Бриллиант [Brilliant], 5.1996- Сыктывкар [Syktyvkar] 178 306 Almaz, St. Petersburg   19.1.1995 22.11.1995 in service (2019) Project 10410
ПСКР-921 [PSKR-921], 1998- Кизляр [Kizliar] 177 307 Almaz, St. Petersburg 26.8.1992 6.12.1996 23.12.1997 in service (2019) Project 10410
ПСКР-924 [PSKR-924], later- Валентин Пикуль [Valentin Pikul] 557 308 Almaz, St. Petersburg   25.5.2000 25.6.2001 in service (2019) Project 10410
ПСКР-925 [PSKR-925], 2.2005- Ямалец [Yamalets] 414 309 Almaz, St. Petersburg     15.10.2004 in service (2019) Project 10410
ПСКР-929 [PSKR-929], later- Беркут [Berkut] 113 413 Vostochnaya SYd, Vladivostok 9.2006 13.8.2009 21.4.2010 in service (2019) Project 10410B
ПСКР-... [PSKR-...]   414 Vostochnaya SYd, Vladivostok     2019 building (2019) Project 10410B
ПСКР-... [PSKR-...]   415 Vostochnaya SYd, Vladivostok     2019 building (2019) Project 10410B
Усть-Лабинск [Ust'-Labinsk] 393 808 Yaroslavl SYd 1999 30.8.2011 21.12.2012 in service (2019) Project 10410B
Балаклава [Balaklava]   809 Yaroslavl SYd   17.7.2018 2019 building (2019) Project 10410B
ПСКР-927 [PSKR-927] 383 310 Almaz, St. Petersburg     3.9.2007 in service (2019) Project 10410B
Краснодарец [Krasnodarets] 436 311 Almaz, St. Petersburg 7.2009 10.9.2910 30.11.2010 in service (2019) Project 10410B
Крым [Krym] (ex-ПСКР-932 [PSKR-932]) 356 312 Almaz, St. Petersburg   29.5.2015 24.9.2015 in service (2019) Project 10410B
Керчь [Kerch'] (ex-ПСКР-933 [PSKR-933]) 444 313 Almaz, St. Petersburg 24.5.2017 8.6.2018 26.10.2018 in service (2019) Project 10410B


Technical data


Displacement standard, t333
Displacement full, t

375

Length, m

49.5

Breadth, m

9.20

Draught, m

2.63

No of shafts

3

Machinery

3 M-520 diesels

Power, h. p.

16200

Max speed, kts

32

Fuel, t

diesel oil

Endurance, nm(kts)

1500(12)

Armament

401-409, 801-806, 301-306, 308: 1 x 2 Igla-1M SAM (16 Igla-1M), 1 x 1 - 76/59 AK-176M, 1 x 6 - 30/54 AK-630M, 2 - 400 TT, 2 DCR (12), 2 x 7 - 55 MRG-1 (RG-55) Ogonyok grenade launchers

410, 307, 311: 1 x 2 Igla-1M SAM (16 Igla-1M), 2 x 6 - 30/54 AK-630M, 2 - 400 TT, 2 DCR (12), 2 x 7 - 55 MRG-1 (RG-55) Ogonyok grenade launchers

411, 309, 310: 1 x 2 Igla-1M SAM (16 Igla-1M), 2 x 6 - 30/54 AK-630M, 2 DCR (12), 2 x 7 - 55 MRG-1 (RG-55) Ogonyok grenade launchers

412, 413, 807, 808, 312: 1 x 2 Igla-1M SAM (16 Igla-1M), 2 x 6 - 30/54 AK-306, 2 DCR (12), 2 x 7 - 55 MRG-1 (RG-55) Ogonyok grenade launchers

Electronic equipment

401-410, 801-803, 806, 301, 304-306: Mius, MR-212/201-1 Vaygach-U, MR-123 Vympel-A radars, MG-349M Uzh, MG-7 Braslet sonars, Sliabing ECM suite, 2x PK-16 decoy RL

308: Mius, MR-212/201-1 Vaygach-U, MR-231, MR-123 Vympel-A radars, MG-349M Uzh, MG-7 Braslet sonars, Sliabing ECM suite, 2x PK-16 decoy RL

302, 303: Mius, MR-212/201-1 Vaygach-U, Liman, MR-123 Vympel-A radars, MG-349M Uzh, MG-7 Braslet sonars, Sliabing ECM suite, 2x PK-16 decoy RL

804: Mius, MR-212/201-03 Vaygach, MR-123 Vympel-A radars, MG-349M Uzh, MG-7 Braslet sonars, Sliabing ECM suite, 2x PK-16 decoy RL

805: Mius, MR-212/201-03 Vaygach, Liman, MR-123 Vympel-A radars, MG-349M Uzh, MG-7 Braslet sonars, Sliabing ECM suite, 2x PK-16 decoy RL

410: Mius, MR-212/201-1 Vaygach-U, MR-123 Vympel radars, MG-7 Braslet sonar, Sliabing ECM suite, 2x PK-16 decoy RL

411: Mius, MR-212/201-1 Vaygach-U, MR-231 radars, MG-7 Braslet sonar, Sliabing ECM suite, 2x PK-16 decoy RL

413, 808: Mius, MR-212/201-1 Vaygach-U radars, MG-747 Amulet-3 sonar, Sliabing ECM suite, 2x PK-16 decoy RL

311: Mius, MR-212/201-1 Vaygach-U radars, MG-747 Amulet-3 sonar, Sliabing ECM suite, 2x PK-16 decoy RL

312: Mius, MR-212/201-1 Vaygach-U, MR-415.4 Poisk radars, MG-349M Uzh, MG-747 Amulet-3 sonars, Sliabing ECM suite, 2x PK-16 decoy RL

807: Mius, MR-212/201-1 Vaygach-U, MR-2PV Baltika-M, MR-231 radars, MG-7 Braslet sonar, Sliabing ECM suite, 2x PK-16 decoy RL

310: Mius, MR-212/201-1 Vaygach-U, MR-2PV Baltika-M radars, MG-747 Amulet-3 sonar, Sliabing ECM suite, 2x PK-16 decoy RL

307: Mius, MR-212/201-03 Vaygach, Liman radars, MG-7 Braslet sonar, Sliabing ECM suite, 2x PK-16 decoy RL

309: Mius, Baltika, MR-2PV Baltika-M radars, MG-7 Braslet sonar, Sliabing ECM suite, 2x PK-16 decoy RL

412: Mius, MR-212/201-1 Vaygach-U, MR-2PV Baltika-M, MR-231 radars, MG-7 Braslet sonar, Sliabing ECM suite, 2x PK-16 decoy RL

Complement

28



Standard scale images


<i>PSKR-903 </i>2000
PSKR-903 2000
<i>PSKR-921 </i>2010
PSKR-921 2010


Graphics


<i>Almaz </i>2003
Almaz 2003
<i>PSKR-928 </i>2008
PSKR-928 2008


Project history

Maritime Border Guards craft to replace the existing Project 205Ps.

Modernizations

2010s, PSKR-918: + Furuno MR 2125 radar

2010s, PSKR-900, 904, 908, 914: + Nayada-25M1 radar

2010s, PSKR-916, 919: + MR-212/201-03 Nayada radar

2010s, PSKR-902, 924: + MR-2PV Baltika radar

2010s, PSKR-910: + MR-3PV Liman-18M1 radar

2013, PSKR-912: - Liman radar; + MR-415.2 radar

2014, PSKR-920: + MR-415.4 Poisk radar

2014, PSKR-925: - MR-2PV Baltika-M radar; + MR-3PV Liman-18M1 radar

2014, PSKR-900; 2015, PSKR-907, 914, 923: + MR-231 radar

Naval service

PSKR-901 foundered 7.11.1995 at Korsakov (Sakhalin) during a storm.
