PS-823 border guard ship (pr. 6457S) (2009)
Sprut 2015
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ПС-823 [PS-823], 2013- ППК-823 [PPK-823], 5.2018- Беломорье [Belomorye] | 151 | 511 | Yantar', Kaliningrad | 27.5.2002 | 12.10.2007 | 27.5.2009 | in service (2019) |
| 512 | Yantar', Kaliningrad | 2004 | --- | --- | suspended 2017 |
Technical data
| Displacement standard, t | 800 |
|---|---|
| Displacement full, t | 931 |
| Length, m | 60.2 pp 65.9 oa |
| Breadth, m | 10.6 |
| Draught, m | 3.48 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V1163 diesels |
| Power, h. p. | 7070 |
| Max speed, kts | 21.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 12000(12) |
| Armament | light arms |
| Electronic equipment | MR-231 radar |
| Complement | 14 + 10 special team |
Standard scale images

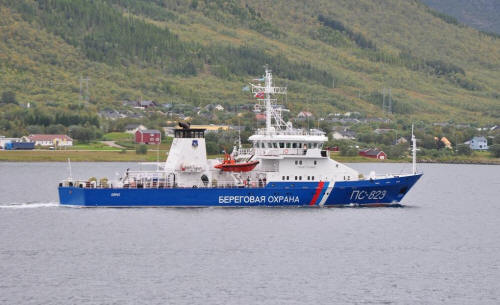

PPK-823 2015
Graphics
Sprut 2015
Project history
Modified German Bad Bremstedt design. Intended for law enforcement, fisheries patrol and search and rescue duties in EEZ.
Modernizations
None.
Naval service
No significant events.
