PSKR-300 border guard boats (project 1248, 12481) (1979-1991)

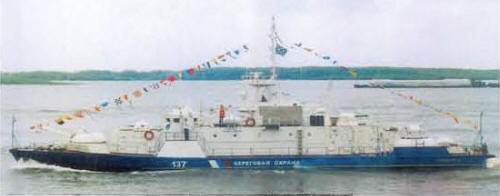

Khabarovsk 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate
ПСКР-300 [PSKR-300]   301 Sretenskiy SYd, Kokuy     1979 stricken 2003
ПСКР-301 [PSKR-301]   302 Sretenskiy SYd, Kokuy     1980 stricken 2003
ПСКР-302 [PSKR-302]   303 Sretenskiy SYd, Kokuy     1980 stricken 2003
ПСКР-303 [PSKR-303]   304 Sretenskiy SYd, Kokuy     1981 stricken 2003
ПСКР-304 [PSKR-304]   305 Sretenskiy SYd, Kokuy     1981 stricken 2003
ПСКР-305 [PSKR-305] 054 306 Sretenskiy SYd, Kokuy     1982 in service (2019)
ПСКР-306 [PSKR-306], 2003- Вихрь [Vikhr'] 191 307 Sretenskiy SYd, Kokuy     4.9.1982 in service (2019)
ПСКР-307 [PSKR-307], 2003- Шторм [Shtorm] 056 308 Sretenskiy SYd, Kokuy     1983 in service (2019)
ПСКР-308 [PSKR-308] 060 309 Sretenskiy SYd, Kokuy     1983 in service (2019)
ПСКР-309 [PSKR-309], 2003- Гроза [Groza] 057 1310 Sretenskiy SYd, Kokuy     1984 in service (2019)
ПСКР-310 [PSKR-310], 2003- 60 лет пограничных войск [60 Let Pogranichnykh Voysk] 180 1311 Sretenskiy SYd, Kokuy     1984 in service (2019)
ПСКР-311 [PSKR-311]   1312 Sretenskiy SYd, Kokuy     1985 stricken 2018
ПСКР-312 [PSKR-312], 2002- Шквал [Shkval] 138 1313 Sretenskiy SYd, Kokuy     12.10.1985 in service (2019)
ПСКР-313 [PSKR-313], 5.2003- Хабаровск [Khabarovsk] 137 1314 Sretenskiy SYd, Kokuy     1986 in service (2019)
ПСКР-314 [PSKR-314], 2002- Тайфун [Tayfun] 127 1315 Sretenskiy SYd, Kokuy 18.11.1985 11.7.1986 30.10.1986 in service (2019)
ПСКР-315 [PSKR-315]   1316 Sretenskiy SYd, Kokuy     15.9.1987 stricken 2018
ПСКР-316 [PSKR-316] 192 1317 Sretenskiy SYd, Kokuy     22.10.1987 in service (2019)
АК-440 [AK-440] (ex-ПСКР-317 [PSKR-317]), 11.1994- ПСКР-317 [PSKR-317], 2003- Благовещенск [Blagoveshchensk] 190 1318 Sretenskiy SYd, Kokuy   5.1988 1988 Navy till 11.1994, in service (2019)
АК-459 [AK-459] (ex-ПСКР-318 [PSKR-318]), 11.1994- ПСКР-318 [PSKR-318], 2003- Смерч [Smerch] 145 1319 Sretenskiy SYd, Kokuy   5.1988 1988 Navy till 11.1994, in service (2019)
АК-467 [AK-467] (ex-ПСКР-319 [PSKR-319]), 11.1994- ПСКР-319 [PSKR-319] 193 1320 Sretenskiy SYd, Kokuy     1989 Navy till 11.1994, in service (2019)
АК-469 [AK-469] (ex-ПСКР-320 [PSKR-320]), 11.1994- ПСКР-320 [PSKR-320], 2003- Ураган [Uragan] 167 1321 Sretenskiy SYd, Kokuy     1989 Navy till 11.1994, in service (2019)
АК-313 [AK-313] (ex-ПСКР-321 [PSKR-321]), 11.1994- ПСКР-321 [PSKR-321] 188 1322 Sretenskiy SYd, Kokuy     1990 Navy till 11.1994, in service (2019)
АК-320 [AK-320] (ex-ПСКР-322 [PSKR-322]), 11.1994- ПСКР-322 [PSKR-322], 2.1999- Василий Поярков [Vasiliy Poyarkov] 198 1323 Sretenskiy SYd, Kokuy     1991 Navy till 11.1994, in service (2019)


Technical data


Displacement standard, t

202

Displacement full, t

214

Length, m

38.9

Breadth, m

6.10

Draught, m

1.22

No of shafts

3

Machinery

3 M-401B diesels

Power, h. p.

3300

Max speed, kts

17.5

Fuel, t

diesel oil

Endurance, nm(kts)

500(10)

Armour, mmside: 8 turret: 35
Armament

1 x 1 - 100/54 D-10-T2s, 1 x 6 - 30/54 AK-306, 1 x 2 - 12.7/79, 1 x 1 - 7.6/90, 1 x 1 - 30 BP-30 Plamia grenade launcher, 1 x 2 - 140 ZIF-121M Sneg RL

Electronic equipment

Mius radar

Complement

21



Standard scale images


<i>PSKR-300 </i>2000
PSKR-300 2000


Graphics


<i>Khabarovsk </i>2006
Khabarovsk 2006


Project history

River monitors for Amur flotilla.

Modernizations

2010s, some received new radars: Liman, MR-3PV Liman-18M1, MR-5PV Gals, MR-415 Poisk

Naval service

No significant events.
