POLIARNAYA ZVEZDA border guard ships (pr. 22100) (2016-)

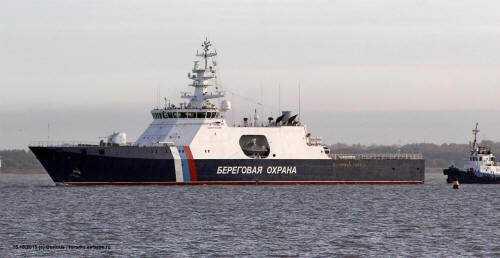

Poliarnaya Zvezda 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Полярная Звезда [Poliarnaya Zvezda] | 511 | 111 | SSZ im. Gorkogo, Zelenodolsk | 30.5.2012 | 21.5.2014 | 15.12.2016 | in service (2019) |
| Петропавловск-Камчатский [Petropavlovsk-Kamchatskiy] | 112 | SSZ im. Gorkogo, Zelenodolsk | 15.6.2015 | 1.6.2018 | 2019 | building (2019) | |
| Анадырь [Anadyr'] | 113 | SSZ im. Gorkogo, Zelenodolsk | 28.4.2017 | 2019 | 2019 | building (2019) |
Technical data
| Displacement standard, t | 2700 |
|---|---|
| Displacement full, t | 3000 |
| Length, m | 91.8 |
| Breadth, m | 14.8 |
| Draught, m | |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 12000(20) |
| Armament | 1 x 1 - 76/59 AK-176MA, 2 x 1 - 14.5/89, 1 helicopter (Ka-27PS), 2 RIBs |
| Electronic equipment | radars |
| Complement | 41 |
Standard scale images

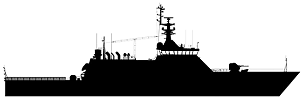

Poliarnaya Zvezda 2016
Graphics
Poliarnaya Zvezda 2016
Project history
Replacement for the project 11351 frigates and project 97P patrol icebreakers. Icebreaking reinforced hull and machinery permit to break 80cm-thick ice. Helicopter hangar and flight deck. Ship are intended to perform patrol duties in sea and ocean zones, counterpiracy and search and rescue duties. Bordering RIBs can be launched and recovered at full speed.
Modernizations
None.
Naval service
No significant events.
