DELFINUL submarine (1986)

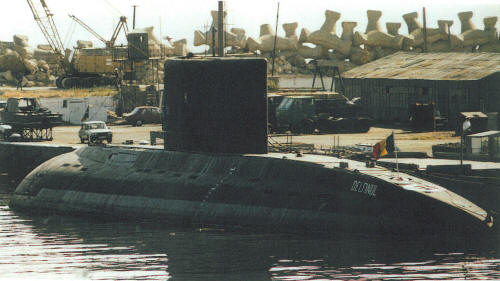

Delfinul 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Delfinul (ex-Б-801 [B-801]) | 521 | 401 | Krasnoye Sormovo, Gorkiy, USSR | 6.4.1984 | 20.9.1985 | 29.9.1985 // 12.1986 | in service (2019) |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement normal, t | 2325 / 3075 |
| Length, m | 72.6 |
| Breadth, m | 9.90 hull 12.8 max |
| Draught, m | 6.60 |
| No of shafts | 1 |
| Machinery | 2 4DL-42M diesel-generators, 1 PG-141 electric motor / 1 PG-142 electric motor for crouching |
| Power, h. p. | 4080 / 5500 / 150 |
| Max speed, kts | 10.7 / 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6880(7) / 400(3) |
| Armament | 6 - 533 TT (bow, 18, or 24 mines), 1 x 8 Igla-1 SAM (8 9M313) |
| Electronic equipment | MRK-50E Kaskad radar, MGK-400E Rubikon-E sonar suite, MG-519E Arfa-E, MG-512 Vint, MG-53, MG-553 Shkert sonars, MRP-25E ECM suite, MVU-110 Uzel CCS |
| Complement | 60 |
| Diving depth operational, m | 240 |
Standard scale images
Delfinul 1990
Graphics
Delfinul 2003
Project history
Soviet project 877EKM submarine, built specially for export. Transfer of second submarine was cancelled for financial reasons.
Modernizations
None.
Naval service
Reported non-operational since mid-1996 in need for major overhaul.
