Contra-Amiral Eustaţiu Sebastian guard ships (1989-1996)





Contra-Amiral Horia Macellariu 2012

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Contra-Amiral Eustaţiu Sebastian 264, 3.2004- F264   Santierul Naval 2 Mai, Mangalia 1987 12.4.1988 30.12.1989 in service (2019)
Contra-Amiral Horia Macellariu 265, 3.2004- F265   Santierul Naval 2 Mai, Mangalia 1988 15.5.1994 29.9.1996 in service (2019)


Technical data


Displacement standard, t

1540

Displacement normal, t

1660

Length, m

89.4 pp 92.4 oa

Breadth, m

11.7

Draught, m

3.75

No of shafts

4

Machinery

4 16R-251 FM1 diesels

Power, h. p.

13140

Max speed, kts

24

Fuel, t

diesel oil

Endurance, nm(kts)

1500

Armament

1 x 1 - 76/59 AK-176, 2 x 6 - 30/54 AK-630, 2 x 2 - 533 TT (4), 2 x 12 RBU-6000 ASWRL, helicopter deck

Electronic equipment

264: MR-302 Rubka, 2x Nayada, MR-123 Vympel radars, Herkules sonar, 2x Nakat ECM suites, 2x PK-16 decoy RL

265: MR-302 Rubka, 2x Nayada radars, Herkules sonar, 2x Bizan'-4 ECM suites, 2x PK-16 decoy RL

Complement

79



Standard scale images

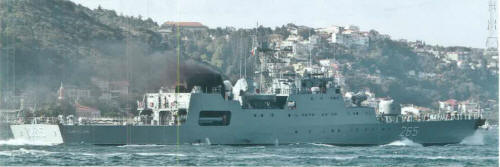

<i>Contra-Amiral Eustaţiu Sebastian </i>2000
Contra-Amiral Eustaţiu Sebastian 2000


Graphics


<i>Contra-Amiral Horia Macellariu </i>2012
Contra-Amiral Horia Macellariu 2012


Project history

Project Tetal II (1048M) with more modern armament and sensors and helicopter deck (but no hangar) instead of aft gun mount.

Modernizations

None.

Naval service

No significant events.
