PORTUGUESE NAVY (PORTUGAL)

MINE WARFARE SHIPS

VULCANO minelayer

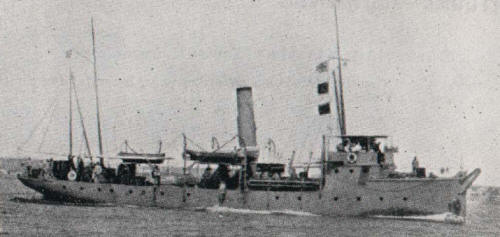

Vulcano 1918

Name No Builder Laid down Launched Comp Fate
Vulcano   Thornycroft, Southampton, UK   1910 1910 discarded late 1940s



Displacement normal, t

151

Displacement full, t



Length, m

33.5

Breadth, m

5.90

Draught, m

1.30 normal 2.20 max

No of shafts

2

Machinery

VTE, 1 Thornycroft cylindrical boiler

Power, h. p.

412

Max speed, kts

12

Fuel, t

coal
Endurance, nm(kts)

Armament

mines

Complement

24

Ship project history: Small net- and a mine-layer. In 1920s-1930s she was employed for torpedo training and carried 3 torpedo tubes.

Modernizations: None.

Naval service: No significant events.

Vulcano 1933
