RIO MINHO river patrol boat (1991)

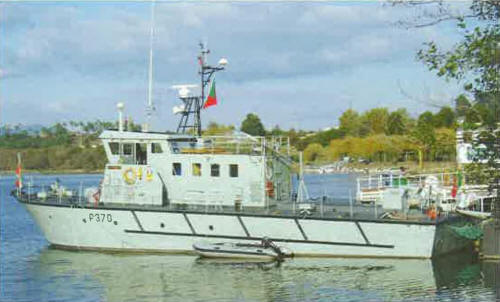

Rio Minho 2006
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P370 Rio Minho |
Arsenal do Alfeite: P370 |
1991: P370 |
None |
None |
in service (2019): P370 |
Technical data
| Displacement standard, t | 57 |
|---|---|
| Displacement full, t | 72 |
| Length, m | 20.0 pp 22.4 oa |
| Breadth, m | 6.00 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 Deutz diesels |
| Power, h. p. | 660 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 420(7) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Furuno 1505DA radar |
| Complement | 8 |
Graphics
Rio Minho 2006
Project history
Patrol boat for Rio Minho.
Modernizations
None.
Naval service
No significant events.
