ORZEŁ submarine (1986)

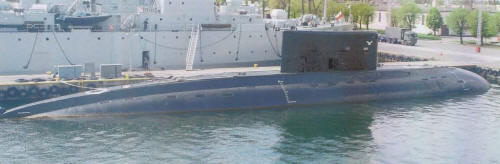

Orzeł 2007 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Orzeł (ex-B-351) 291 603 Krasnoye Sormovo, Gorkiy, USSR 29.9.1984 7.6.1985 29.11.1985 // 29.4.1986 in service (2019)


Technical data


Displacement standard, t



Displacement normal, t

2325 / 3075

Length, m

72.6

Breadth, m

9.90 hull 12.8 max

Draught, m

6.60

No of shafts

1

Machinery

2 4DL-42M diesel-generators, 1 PG-141 electric motor / 1 PG-142 electric motor for crouching

Power, h. p.

4080 / 5500 / 150

Max speed, kts

10.7 / 18

Fuel, t

diesel oil

Endurance, nm(kts)

6880(7) / 400(3)

Armament

6 - 533 TT (bow, 18 or 24 mines), 1 x 8 Igla-1 SAM (8 9M313)

Electronic equipment

MRK-50E Kaskad radar, MGK-400E Rubikon-E sonar suite, MG-519E Arfa-E, MG-512 Vint, MG-53, MG-553 Shkert sonars, MRP-25E ECM suite, MVU-110 Uzel CCS

Complement

60

Diving depth operational, m

240



Standard scale images


<i>Orzeł </i>2000
Orzeł 2000


Graphics


<i>Orzeł </i>2007 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Orzeł 2007 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Specially built for export Soviet Project 877E, lead ship. Formally submarine was at first commissioned by Soviet Navy and later transferred to the Poland. Planned three additional submarines were never transferred due to financial problem, two project 641 submarines were transferred instead.

Modernizations

None.

Naval service

No significant events.
