POLISH NAVY (POLAND)

SUBMARINES

ORZEŁ submarines (1955/1962-1965)

Orzeł 1970

Name No Builder Laid down Launched Comp Fate
Orzeł (ex-S-265) 292 112 Zhdanov Yd, Gorkiy, USSR 27/7/1954 30/11/1954 30/7/1955 // 29/11/1962 stricken 12/1983
Sokół (ex-S-278) 293 112 Zhdanov Yd, Gorkiy, USSR 9/12/1954 19/4/1955 12/11/1955 // 1964 stricken 12/1987
Kondor (ex-S-355) 294 189 Ordzhonikidze Yd, Leningrad, USSR 28/7/1954 30/6/1955 12/11/1955 // 10/6/1965 stricken 9/1988
Bielik (ex-S-279) 295 112 Zhdanov Yd, Gorkiy, USSR 20/12/1954 23/4/1955 20/11/1955 // 1/7/1965 stricken 10/1985


Displacement standard, t



Displacement normal, t

1045 / 1342

Length, m

76.0

Breadth, m

6.30

Draught, m

4.55

No of shafts

2

Machinery

37D diesels / PG-101 electric motors

Power, h. p.

4000 / 2700

Max speed, kts

18.3 / 13.1

Fuel, t

diesel oil

Endurance, nm(kts)

8580(10) / 353(2)

Armament

6 - 533 TT (4 bow, 2 stern, 12 or 22 mines)

Sensors

Flag radar, Plutoniy, Feniks sonars, Nakat ECM suite

Complement

55

Diving depth operational, m

170

Ship project history: Former Soviet project 613 medium submarines.

Modernizations: None.

Naval service: No significant events.

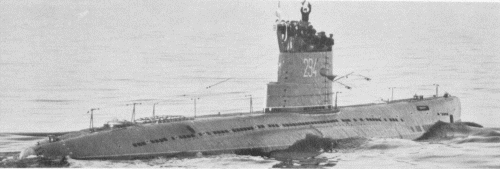

Kondor 1972

Ivan Gogin, 2016
