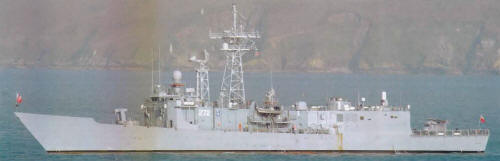

Generał Kazimierz Pułaski 2008 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Generał Kazimierz Pułaski (ex-Clark)	272	374	General Dynamics Bath Iron Works, USA	17.7.1978	24.3.1979	9.5.1980 // 15.3.2000	in service (2019)
Generał Tadeusz Kościuszko (ex-Wadsworth)	273	125	Todd, San Pedro, USA	13.7.1977	29.7.1978	28.2.1980 // 28.6.2002	in service (2019)

Technical data

Displacement standard, t	3100
Displacement full, t	3658
Length, m	125.9 wl 135.6 oa
Breadth, m	13.7
Draught, m	5.80 mean 6.70 max
No of shafts	1
Machinery	2 General Electric LM-2500 gas turbines
Power, h. p.	41000
Max speed, kts	29
Fuel, t	gas turbine oil 587
Endurance, nm(kts)	4200(20)
Armament	1 x 1 Harpoon SSM / Standard SM-1MR SAM (4 RGM-84 + 36 RIM-66), 1 x 1 - 76/62 Mk 75, 1 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT (A244, MU90), 2 helicopters (SH-2G Super Seasprite)
Electronic equipment	272: Furuno, SPS-55, SPS-49(V)4, Mk 92 Mod. 2, SPG-60, Mk 90 radars, SQQ-89(V)2 sonar suite (SQS-56 hull-mounted sonar + SQR-19(V)2 towed array), SLQ-32(V)2 ECM suite, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy 273: Furuno, SPS-55, SPS-49(V)4, Mk 92 Mod. 2, SPG-60, Mk 90 radars, SQQ-89(V)9 sonar suite (SQS-56 hull-mounted sonar + SQR-19(V)9 towed array), SLQ-32(V)2 ECM suite, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy
Complement	217

Graphics

Project history

Former USN Oliver H. Perry class frigates.

Modernizations

None.

Naval service

No significant events.
