STRAŻNIK-1 patrol boats (project SAR-1500SG, 2000)





Strażnik-1 2007

Ships


Names Builders Completed Losses Transfers Discarding

SG-211 Strażnik-1

SG-212 Strażnik-2

Alu International, Gdańsk // Damen, Gdynia: SG-211, 212

2000: SG-211, 212

none

none

in service (2019): SG-211, 212



Technical data


Displacement standard, t26
Displacement full, t
Length, m

11.8 pp 15.2 oa

Breadth, m

5.39

Draught, m

0.90

No of shafts

1 waterjet

Machinery

1 MAN 2848LE01 diesel

Power, h. p.

680

Max speed, kts

35

Fuel, t

diesel oil

Endurance, nm(kts)200(30)
Armament

1 x 1 - 7.6/90

Electronic equipmentSimrad radar
Complement

4



Graphics

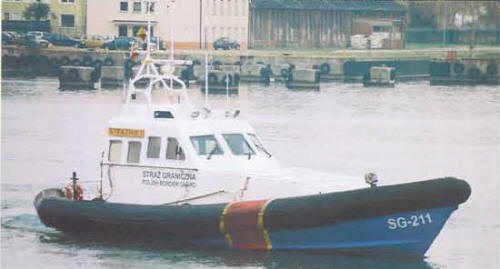

<i>Strażnik-1 </i>2007
Strażnik-1 2007


Project history

Aluminium construction.

Modernizations

None.

Naval service

No significant events.
