OP-202 board guard ships (1958)

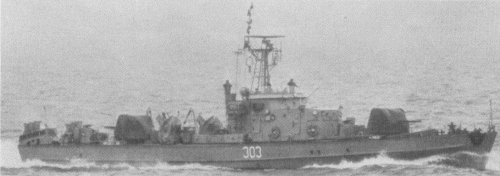

Gopło 1972

Ships


Name No Yard No Builder Laid down Launched Comp Fate
OP-202, 5.1967- Gardno 1/1960- 302   Stocznia Marynarki Wojennej, Gdynia   5/1957 1/1958 stricken 12.1978
OP-203, 5.1967- Gopło 1/1960- 303   Stocznia Marynarki Wojennej, Gdynia     6/1958 stricken 12.1977
OP-204, 5.1967- Wigry 1/1960- 304   Stocznia Marynarki Wojennej, Gdynia     9/1958 stricken 12.1979


Technical data


Displacement standard, t

130

Displacement full, t

150

Length, m

35.0

Breadth, m

5.80

Draught, m

1.50

No of shafts

2

Machinery

2 6KVD-43 diesels

Power, h. p.

2400

Max speed, kts

19

Fuel, t

diesel oil

Endurance, nm(kts)1000(10)
Armament

2 x 1 - 37/73 70K, 2 x 1 - 12.7/79, 2 DCR

Electronic equipmentZarnitsa radar, Tamir-10 sonar
Complement

29



Standard scale images


<i>Gardno</i> 1970
Gardno 1970


Graphics


<i>Gopło </i>1972
Gopło 1972


Project history

Patrol ships, development of German R-boats.

Modernizations

1970s, all: - Zarnitsa radar; + SRN-231 radar

Naval service

No significant events.
