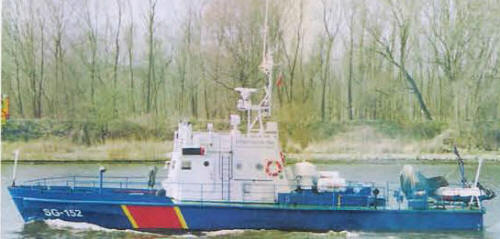

SG-152 2004

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
KP-141 - 152, 1991- SG-141 - 152	Stocznia Wisła, Gdańsk: KP-141-152	1973: KP-141 1974: KP-142, 143 1975: KP-144-146 1976: KP-147-149 1977: KP-150-152	none	none	1998: SG-147-149, 151 1999: SG-141 2011: SG-142, 143, 145, 146, 152 2013: SG-144, 150

Technical data

Displacement standard, t	42
Displacement full, t	50
Length, m	22.8
Breadth, m	5.00
Draught, m	1.20
No of shafts	2
Machinery	2 Wola 31 ANM28 H12A diesels
Power, h. p.	1006
Max speed, kts	12
Fuel, t	diesel oil
Endurance, nm(kts)	500(18)
Armament	1 x 2 - 12.7/79
Electronic equipment	SRN-207 radar
Complement	9

Standard scale images

Graphics

Project history

Medium Board Guard boats.

Modernizations

None.

Naval service

No significant events.
