Kołobrzeg 1969 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Hel	161, 1970- 421	421	Primorskiy Yd, Leningrad, USSR			// 1.1964	stricken 12.1984
Gdańsk	162, 1970- 422	422	Primorskiy Yd, Leningrad, USSR			// 9.1964	stricken 2.1989
Gdynia	163, 1970- 423	423	Primorskiy Yd, Leningrad, USSR			// 9.1965	stricken 11.1989

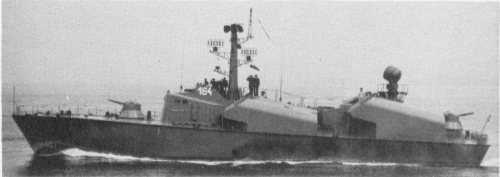

Kołobrzeg	164, 1970- 424	424	Primorskiy Yd, Leningrad, USSR			// 11.1965	stricken 6.1993
Szczecin	165, 1970- 425, 9.1991- SG302	425	Primorskiy Yd, Leningrad, USSR			// 1.1966	Coast Guard 6.1990, stricken 1995
Elbląg	166, 1970- 426, 9.1991- SG303	426	Primorskiy Yd, Leningrad, USSR			// 9.1966	Coast Guard 6.1990, stricken 1995
Puck	167, 1970- 427	427	Primorskiy Yd, Leningrad, USSR			// 10.1967	stricken 2.2003
Ustka	168, 1970- 428	428	Primorskiy Yd, Leningrad, USSR			// 9.1968	stricken 10.2000
Oksywie	429	429	Primorskiy Yd, Leningrad, USSR			// 12.1971	stricken 10.2000
Darłowo	430	430	Primorskiy Yd, Leningrad, USSR			// 1.1972	stricken 2.2003
Świnoujście	431	431	Primorskiy Yd, Leningrad, USSR			// 1.1973	stricken 3.2006
Dziwnów	432	432	Primorskiy Yd, Leningrad, USSR			// 1.1975	stricken 6.2004
Władysławowo	433	433	Primorskiy Yd, Leningrad, USSR			// 11.1975	stricken 3.2006

Technical data

Displacement standard, t	184
Displacement full, t	226
Length, m	38.6
Breadth, m	7.60
Draught, m	1.84
No of shafts	3
Machinery	3 M-504B diesels
Power, h. p.	15000
Max speed, kts	42
Fuel, t	diesel oil
Endurance, nm(kts)	1800(14)
Armament	4 x 1 P-15/P-15T SSM (4 P-15/P-15T), 2 x 2 - 30/71 AK-230
Electronic equipment	MR-101 Rangout, MR-104 Rys' radars
Complement	28

Standard scale images

Graphics

Project history

Soviet project 205 craft.

Modernizations

1990, Szczecin, Elbląg: - 4 x 1 P-15/P-15T SSM

Naval service

No significant events.
