GENERAL EMILIO AGUINALDO large patrol craft (1990-1999)

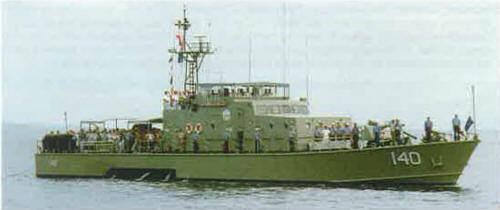

  General Emilio Aguinaldo 1993

Ships


Name No Yard No Builder Laid down Launched Comm Fate
General Emilio Aguinaldo PG140   Cavite NSY 1982 23.6.1984 21.11.1990 stricken 4.2016
General Antonio Luna PG141   Cavite NSY 2.12.1990 23.6.1992 27.5.1999 stricken 4.2016
  PG142   Cavite NSY 14.2.1994 4.2000 --- cancelled early 2000s


Technical data


Displacement standard, t

215
Displacement full, t

280
Length, m

44.2
Breadth, m

7.30
Draught, m

1.60
No of shafts4
Machinery

4 General Motors Detroit Diesel 12V92TA diesels
Power, h. p.

2040
Max speed, kts

22
Fuel, tdiesel oil
Endurance, nm(kts)1100(18)
Armament

2 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10, 4 x 1 - 12.7/90
Electronic equipment

Raytheon radar
Complement58


Graphics


  <i>General Emilio Aguinaldo</i> 1993
  General Emilio Aguinaldo 1993


Project history

Unsuccessful design. General Emilio Aguinaldo was originally to have carried SSMs. Third craft was cancelled due to funding shortages. Three more planned units with 76mm/62 OTO-Melara and twin 25mm guns were planned but construction was also cancelled. Overloaded and underpowered design.

Modernizations

None.

Naval service

: Both ships were stricken due to strong hull corrosion.
