CLAVERO river gunboats (2010-2016)
Clavero 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Clavero | 15 | SIMA, Iquitos | 2007 | 10.6.2008 | 9.4.2010 | in service (2019) | |
| Castilla | 16 | SIMA, Iquitos | 4/2011 | 2012 | 10.3.2016 | in service (2019) |
Technical data
| Displacement standard, t | 190 |
|---|---|
| Displacement full, t | 344 |
| Length, m | 45.7 |
| Breadth, m | 10.6 |
| Draught, m | 0.61 |
| No of shafts | 3 |
| Machinery | 3 Caterpillar C3408 diesels |
| Power, h. p. | 1365 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6600(10) |
| Armament | 1 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90, 2 x 1 - 40/19 CIS-40 grenade launchers |
| Electronic equipment | Furuno radar |
| Complement | 29 + 20 passengers |
Standard scale images

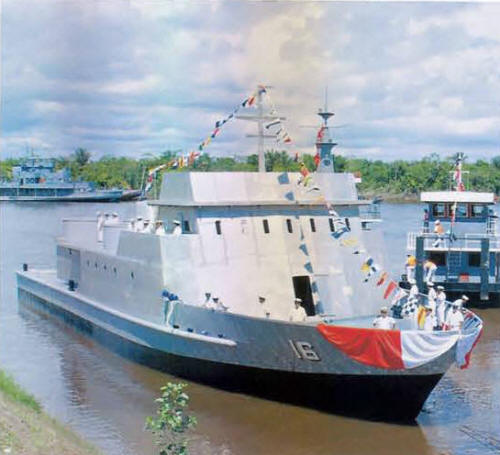

Clavero 2010
Graphics
Clavero 2008
Project history
Fitted to carry a small interceptor craft. Ordered in June 2016.
Modernizations
None.
Naval service
Clavero was damaged 25.5.2010 but later repaired.
