LOMAS medium landing ships (1945/1959)

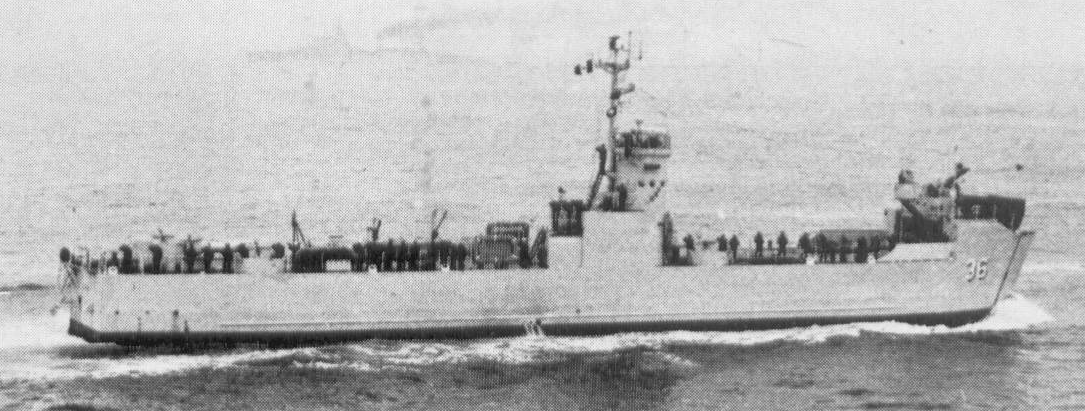

Lomas 1975
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Lomas (ex-LSM396) | 36, 1977- 145 | Charleston N Yd, USA | 12/1944 | 2.1.1945 | 3.1945 // 7.1959 | deleted 1986 | |
| Atico (ex-LSM554) | 37, 1977- 146 | Charleston N Yd, USA | 3/1945 | 22.3.1945 | 9.1945 // 7.1959 | deleted 1986 |
Technical data
| Displacement standard, t | 520 |
|---|---|
| Displacement full, t | 1095 |
| Length, m | 59.9 wl 62.0 oa |
| Breadth, m | 10.5 |
| Draught, m | landing: 1.07 fore, 2.13 aft |
| No of shafts | 2 |
| Machinery | 4 General Motors diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 12.5 - 13.2 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4900 (12) |
| Armament | 1 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10 |
| Military load | 5 medium or 3 heavy tanks or 6 LVT or 9 DUKW, 48 - 54 marines |
| Electronic equipment | nav. radar |
| Complement | 60 |
Standard scale images
Lomas 1965
Graphics
Lomas 1975
Project history
Former USN LSM1 class medium landing ships.
Modernizations
None.
Naval service
No significant events.
