TENIENTE FERRÉ frigates (1944/1947)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Teniente Ferré (ex-Poundmaker), 1953- Ferré F3, 1959- FE3, 1960- 66   Canadian Vickers, Montreal, Canada 1.1944 21.4.1944 9.1944 // 1947 discarded 1966
Teniente Palacios (ex-St. Pierre), 1953- Palacios F4, 1959- FE4, 1960- 65   Davie SB, Lauzon, Canada 6.1943 1.12.1943 8.1944 // 1947 discarded 1966


Technical data


Displacement standard, t

1460

Displacement full, t

2180

Length, m

86.3 pp 91.8 oa

Breadth, m

11.2

Draught, m

3.89 deep load

No of shafts

2

Machinery

2 VTE, 2 Admiralty 3-drum boilers

Power, h. p.

5500

Max speed, kts

20

Fuel, t

oil 646

Armament

F3: 1 x 2 - 102/45 Mk XIX, 1 x 1 - 76/40 HA/LA Mk IX, 4 x 2 - 20/70 Mk V, 1 x 24 - 178 Hedgehog ASWRL, 8 DCT, 2 DCR (150)

F4: 1 x 2 - 102/45 Mk XIX, 4 x 2 - 20/70 Mk V, 2 x 1 - 20/70 Mk III, 1 x 24 - 178 Hedgehog ASWRL, 8 DCT, 2 DCR (150)

Electronic equipmentSU radar, type 144 sonar
Complement

140



Standard scale images

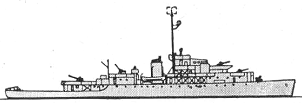

<i>Teniente Palacios </i>1950
Teniente Palacios 1950
<i>Palacios </i>1960
Palacios 1960


Project history

Former Canadian 'River' class frigates.

Modernizations

1952, Teniente Ferré: - 1 x 2 - 102/45, 1 x 1 - 76/40, 2 x 2 - 20/70, British radars; + 3 x 1 - 76/50 Mk 21, 2 x 2 - 40/60 Mk 1, 1 x 1 - 20/70 Mk 7, US radars

1952, Teniente Palacios: - 1 x 2 - 102/45, 2 x 2 - 20/70, 1 x 1 - 20/70, 2 DCT, British radars; + 3 x 1 - 76/50 Mk 21, 2 x 2 - 40/60 Mk 1, US radars

Naval service

No significant events.
