ITAIPÚ river gunboat (1985)

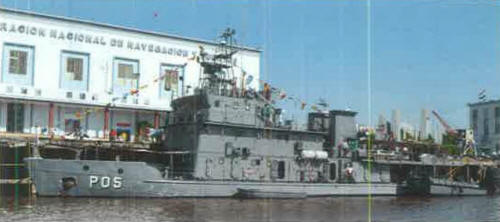

Itaipú 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Itaipú | P05 | Arsenal de Marinha do Rio de Janeiro, Brazil | 3.3.1983 | 16.3.1984 | 2.4.1985 | in service (2019) |
Technical data
| Displacement standard, t | 220 light |
|---|---|
| Displacement full, t | 384 |
| Length, m | 45.0 pp 46.3 oa |
| Breadth, m | 8.45 |
| Draught, m | 1.42 |
| No of shafts | 2 |
| Machinery | 2 MAN V6 V16/18TL diesels |
| Power, h. p. | 1824 |
| Max speed, kts | 14.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4500(11) |
| Armament | 1 x 1 - 40/60 Mk 3, 2 x 2 - 12.7/90, 2 x (1 - 12.7/90 + 1 - 81/12 M29), helicopter deck |
| Military load | 2 LCVP |
| Electronic equipment | Furuno radar |
| Complement | 40 |
Standard scale images
sister-ship Amapá 2000
Graphics
Itaipú 2011
Project history
Brazilian Roraima class river gunboat. Helicopter deck can accommodate one AS.350 helicopter.
Modernizations
None.
Naval service
No significant events.
