Tacuari 1932

100 - 1000 t displacement/ BRT tonnage vessels

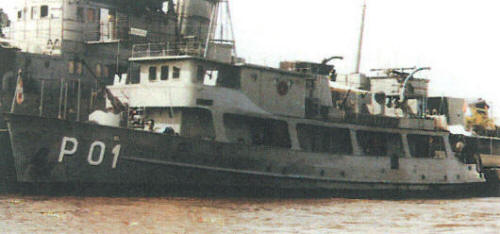

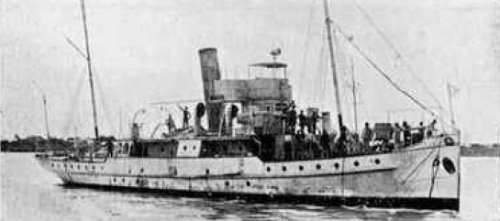

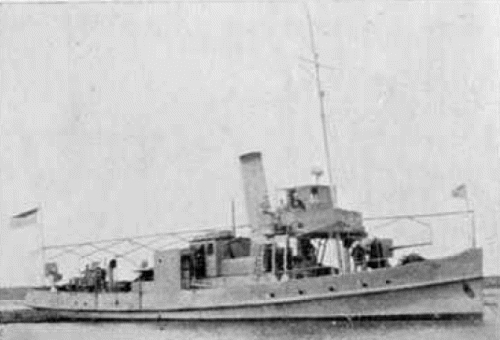

P01 Capitán Cabral (ex-Triunfo, ex-Adolfo Riquelme) (1907, 206, 1-76/40, 1908 - in service 2019); Tacuari (1910, 150, 2-76/50, 2-76/40, 1910 - 1950s)

Technical data

Displacement standard, t
Displacement full, t	190
Length, m	30.0 pp 34.5 oa
Breadth, m	7.10
Draught, m	1.71
No of shafts	1
Machinery	1 Caterpillar 3408 diesel
Power, h. p.	335
Max speed, kts	8
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90
Electronic equipment	Furuno radar
Complement	25

Graphics

Project history

Patrols were converted from merchant tugs.

Modernizations

1984, Capitán Cabral: was reconstructed with diesel (336hp, 8kts), armament consisted of 1 x 1 - 40/60 Mk 1, 2 x 1 - 20/70 Mk 4, 2 x 1 - 12.7/90

Data as follows:

Naval service

No significant events.
