MSI01 drone minesweepers (1972-1984/1991)
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
MSI01 - 08 |
Hudong, Shanghai, China: MSI01-08 |
1972-1984 // 1991: MSI01-08 |
none |
none |
1994: 3 units 1996: 5 units |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 47 |
| Length, m | 20.9 |
| Breadth, m | 4.20 |
| Draught, m | 1.30 |
| No of shafts | 1 |
| Machinery | 1 12V150C diesel |
| Power, h. p. | 300 |
| Max speed, kts | 11.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 150(11.5) |
| Armament | magnetic and acoustic minesweeping gear |
| Electronic equipment | none |
| Complement | 0 or 3 |

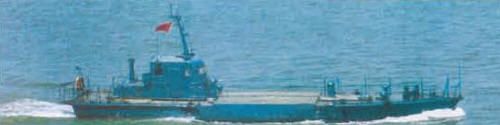

Graphics
Project history
Chinese type 312. Remotely controlled drones, manned only by ferrying. Had electric propulsion for sweeping at 1-5kts.
Modernizations
None.
Naval service
No significant events.
