ALAMGIR frigate (1979/2010)





Alamgir 2013

Ships


Name No Yard No Builder Laid down Launched Comp Fate
عالمگیر [Alamgir] (ex-McInerney) F260   General Dynamics Bath Iron Works, USA 16.1.1978 4.11.1978 15.12.1979 // 31.8.2010 in service (2019)


Technical data


Displacement standard, t

3010

Displacement full, t

4100

Length, m

125.9 wl 138.8 oa

Breadth, m

13.7

Draught, m

5.80 mean 6.70 max

No of shafts

1

Machinery

2 General Electric LM-2500 gas turbines

Power, h. p.

40000

Max speed, kts

29

Fuel, t

gas turbine oil 587

Endurance, nm(kts)5000(18)
Armament

1 x 1 - 76/62 Mk 75, 2 x 1 - 25/75 Mk 38 Bushmaster, 1 x 6 - 20/76 Mk 15 Phalanx, 4 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT, 2 helicopters (Alouette III)

Electronic equipment

SPS-55, SPS-49(V)4, Mk 92 Mod.4, Mk 90, Furuno radars, SQQ-89(V)2 sonar suite (SQS-56 hull-mounted sonar + SQR-19(V)2 towed array), SLQ-32(V)2 ECM suite, 2x Mk 36 SRBOC, 2x Nulka decoy RL, SLQ-25 Nixie torpedo decoy, NTDS CCS

Complement

248



Standard scale images

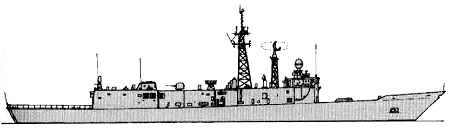

<i>Alamgir </i>2010
Alamgir 2010


Graphics


<i>Alamgir </i>2013
Alamgir 2013


Project history

Former USN frigate of Oliver H. Perry class, transferred without missile launcher.

Modernizations

~2015: + 2 x 4 Harpoon SSM (8 RGM-84A)

Naval service

No significant events.
