HDML1261 patrol boats (1944-1945/1948)





SDML3520 1965

Ships


Names Builders Completed Losses Transfers Discarding

HDML1261 - 1263, 1949- SDML1261 - 1263, 1951- P3517 - 3519

HDML1266, 1949- SDML1266, 1950 - P3520

Bombay DYd, India: HDML1261 - 1263

Mohatta, Karachi: HDML1266

1944 // 1948: HDML1266

1945 // 1948: HDML1261 - 1263

none

none

1965: SDML3518, 3519

1975: SDML3517

1977: SDML3520



Technical data


Displacement standard, t

46

Displacement full, t54
Length, m22.0
Breadth, m4.83
Draught, m1.40 deep load
No of shafts2
Machinery

2 Thornycroft diesels

Power, h. p.

260

Max speed, kts

11

Fuel, t

diesel oil 7500 l

Endurance, nm(kts)
Armament

1 x 1 - 47/40 Mk I, 1 x 1 - 20/70 Mk III, 2 x 2 - 7.7/94, 8 DC

Electronic equipmenttype 291U radar (some), type 134 sonar
Complement10


Standard scale images


<i>SDML3518</i> 1950
SDML3518 1950


Graphics

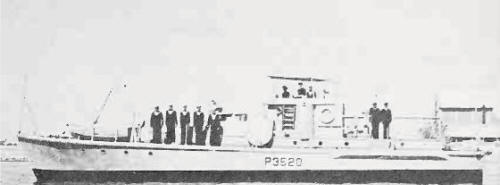

<i>SDML3520 </i>1965
SDML3520 1965


Project history

Wooden-hulled round-bilge boats with good seaworthiness. HDML class.

Modernizations

None.

Naval service

No significant events.
