ÆGER gunboat (1894)
Æger
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Æger | MV Horten | 1.7.1893 | 5/1894 | stricken 1932 |
Technical data
| Displacement normal, t | 316 |
|---|---|
| Displacement full, t | 413 |
| Length, m | 33.2 |
| Breadth, m | 8.80 |
| Draught, m | 2.36 |
| No of shafts | 2 |
| Machinery | 2 VTE, 2 boilers |
| Power, h. p. | 350 |
| Max speed, kts | 9 |
| Fuel, t | coal 24 |
| Endurance, nm(kts) | 600(8) |
| Armour, mm | deck: 38 |
| Armament | 1 x 1 - 209/35 Armstrong A, 1 x 1 - 65/50 Hotchkiss, 2 x 1 - 47/40 Hotchkiss |
| Complement | 43 |
Standard scale images

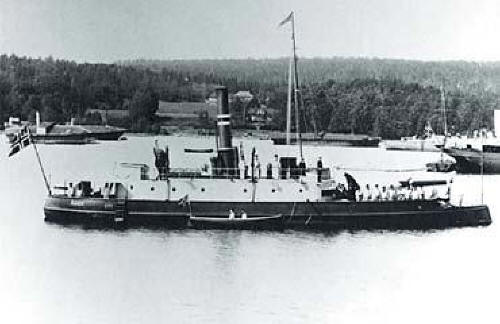

Æger 1901
Graphics
Æger
Project history
Coastal gunboat of so-called "Elswick" type.
Ship protection
38mm armoured deck protected machinery.
Modernizations
None.
Naval service
No significant events.
