BORGEN controlled minelayer (1961)

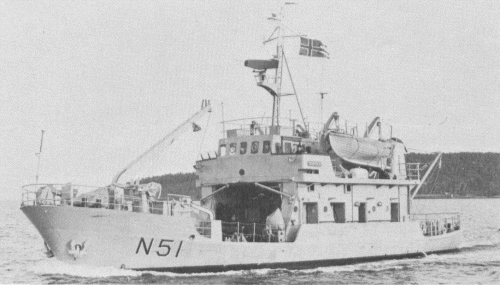

Borgen 1977
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Borgen | N51 | MV Horten | 29.4.1960 | 6.1960 | stricken 1995 |
Technical data
| Displacement standard, t | 282 |
|---|---|
| Displacement full, t | |
| Length, m | 31.3 |
| Breadth, m | 8.00 |
| Draught, m | 3.35 |
| No of shafts | 2 Voith-Schneider propellers |
| Machinery | 2 General Motors 3-71 diesels |
| Power, h. p. | 660 |
| Max speed, kts | 9 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/70 Mk 10, mines |
| Electronic equipment | radar |
| Complement |
Standard scale images
Borgen 1965
Graphics
Borgen 1977
