ROYAL NORWEGIAN NAVY (NORWAY)

TORPEDO SHIPS

SLEIPNER torpedo boats (1937-1939)

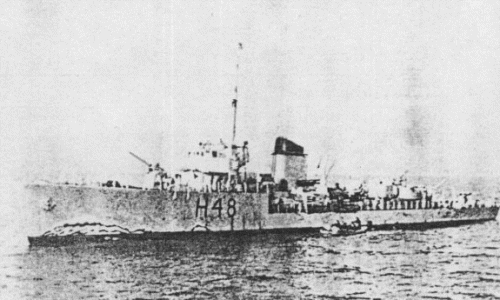

Sleipner 1940

Sleipner 1955

Name No Builder Laid down Launched Comp Fate
Sleipner 1940- H48, 1946- L01, 1950- F300 MV Horten 1933 7/5/1936 1937 stricken 1956
Æger   MV Horten 1934 25/8/1936 1938 sunk 9/4/1940
Gyller 1946- L02, 1950- F301 MV Horten 1936 7/8/1938 8/1939 captured by Germany 9/4/1940 (Löwe), returned 5/1945, stricken 1959



Displacement standard, t

597

Displacement full, t

708

Length, m

72.0 pp 74.3 oa

Breadth, m

7.80

Draught, m

2.10

No of shafts

2

Machinery

De Laval geared steam turbines, 3 Yarrow boilers

Power, h. p.

12500

Max speed, kn

30

Fuel, t

oil 100

Endurance, nm(kts) 3500(15)

Armament

Sleipner, Æger: 3 x 1 - 100/40 Bofors M36, 1 x 1 - 40/56 Bofors M36, 2 x 1 - 12.7/90, 1 x 2 - 533 TT, 4 DCT, 2 DCR, 24 mines

Gyller: 3 x 1 - 100/40 Bofors M36, 1 x 1 - 40/56 Bofors M36, 2 x 2 - 533 TT, 4 DCT, 2 DCR, 24 mines

Complement

75

Ship project history: Destroyers (actually torpedo boats) of Sleipner class were first torpedo ships which has supplemented Norwegian Navy after almost twenty-years break, called as political and financial difficulties. At their designing the task was put to create the ship which, not too yielding to destroyers of neighbour countries and possessing sufficient seaworthiness, would be as small as possible in the sizes and, accordingly, is cheaper (means for fleet though were outlined, but in very limited volume). It is necessary to return due to the Norwegian shipbuilders: they could develop rather original ships, by armament structure practically not yielding to larger (almost twice) Swedish and German "opponents". To reach it it was possible for the account of  reasonable reduction of hull and machinery weights, and also some decrease of speed. Sleipners for the first time in national practice received longitudinal framing without double bottom. Last circumstance was partly indemnified by the big number of watertight bulkheads. Weight of machinery managed to be lowered as a result of raise of steam parameters.

Nevertheless, even these as a whole the successful ships could not disclaim a rule saying: attempt to squeeze a maximum of armaments into the minimum displacement conducts to loss invisible on a paper, but so appreciable qualities in practice: such as seaworthiness and stability. Sleipner notably yielded to her predecessors of Draug class by these factor. Three ships already built or being in a high degree of readiness it was decided to not rebuild, but three units of 2nd subgroup were redesigned, having 2 main guns instead of 3 and slightly lengthened hull.

Modernizations: 6/1940, Sleipner: - 3 x 1 - 100/40; + 2 x 1 - 102/45 QF Mk V, 2 x 1 - 20/70 Oerlikon Mk II

5/1945, Gyller when returned was armed with: 1 x 1 - 105/45 SK C/32, 1 x 1 - 37/83 SK C/30, 2 x 1 - 20/65 C/38

1952-1957, Sleipner, Gyller: were armed by 3 x 1 - 76/50 Mk 21, 2 x 1 - 40/60 Mk 7, 2 x 1 - 20/70 Mk 4, 1 x 24 - 178 Hedgehog ASWRL, 4 DCT, 24 mines

Naval service: Æger was sunk 9/4/1940 in harbour of Stavanger by German aircraft. Sleipner 26/4/1940 retired to England. Gyller surrendered to German troops 11/4/1940 at Kristiansand and commissioned by Kriegsmarine under name Löwe. After war Gyller was returned to Norway and broken up in 1959.

Sleipner 1945
