FARM fishery protection vessels (1962)





Heimdal 1980

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Farm W301   Ankerløkken verft   22.2.1962 2/1962 stricken 1998
Heimdal W302   Bolsones verft, Molde   7.3.1962 9/1962 stricken 1995


Technical data


Displacement standard, t
Displacement full, t600BRT
Length, m54.3
Breadth, m8.20
Draught, m4.90
No of shafts1
Machinery

2 Wichmann 9ACAT diesels

Power, h. p.

2400

Max speed, kts

16

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 76/50 Mk 21

Electronic equipmentradar, sonar
Complement29


Standard scale images


<i>Farm </i>1975
Farm 1975


Graphics

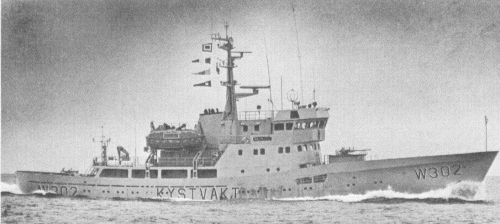

<i>Heimdal</i> 1980
Heimdal 1980


Project history

Purpose built patrol ships.

Modernizations

1979, Farm; 1980, Heimdal: - 1 x 1 - 76/50; + 2 x 1 - 40/70 Bofors 350

Naval service

No significant events.
