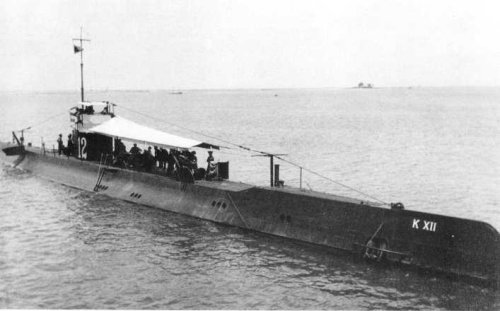

K XII Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
K XI		294	Fijenoord, Schiedam	12.1922	24.4.1924	3.1925	stricken 4.1945
K XII		295	Fijenoord, Schiedam	1.1923	15.7.1924	5.1925	stricken 9.1944
K XIII		296	Fijenoord, Schiedam	10.1923	23.12.1924	3.1926	scuttled 2.3.1942

Technical data

Displacement standard, t	612
Displacement normal, t	688 / 828
Length, m	66.7
Breadth, m	6.15
Draught, m	3.78
No of shafts	2
Machinery	2 MAN 6-cyl diesels / 2 electric motors
Power, h. p.	2400 / 654
Max speed, kts	17 / 8
Fuel, t	diesel oil 40
Endurance, nm(kts)	3500(8) / 25(8)
Armament	1 x 1 - 88/42 Bofors No.2, 2 - 533 TT (bow, 4), 4 - 450 TT (2 bow, 2 stern, 8)
Complement	31
Diving depth operational, m	60

Standard scale images

Graphics

Project history

Built under original design off Van der Stroojf, order was given out 3.9.1921. First Dutch submarines with 533mm torpedoes (also they had 450mm TTs). Double-hulled. All ballast tank valves had an pneumatic drive and were controlled from a central station.

Modernizations

late 1920s, all: + 1 x 1 - 12.7/90

Naval service

K XIII was scuttled at Surabaya 2.3.1942.
