NIAS 4 class screw ships (1895-1897)





Serdang Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Nias     Rijkswerf Amsterdam 1894 1895 1895 subsidiary service 1907
Mataram     Rijkswerf Amsterdam 1895 1896 1896 subsidiary service 1916
Edi   86 De Schelde, Vlissingen 1896 1897 1897 subsidiary service 1910
Serdang   87 De Schelde, Vlissingen 1896 15.5.1897 9.1897 minelayer 1921, torpedo repair ship 1932


Technical data


Displacement normal, t

680
Displacement full, t

Nias: 812

Mataram: 810

Edi, Serdang: 820
Length, m

53.9
Breadth, m

9.44
Draught, m

3.69
No of shafts

2
Machinery

2 VTE
Power, h. p.

1300
Max speed, kts

12.9
Fuel, t

coal 150
Endurance, nm(kts)

2170(10)
Armament

2 x 1 - 105/32 Krupp No.1, 4 x 1 - 37/20 Hotchkiss, 2 x 5 - 37/17 Hotchkiss
Complement

97


Standard scale images


<i>Edi</i> 1897
Edi 1897


Graphics

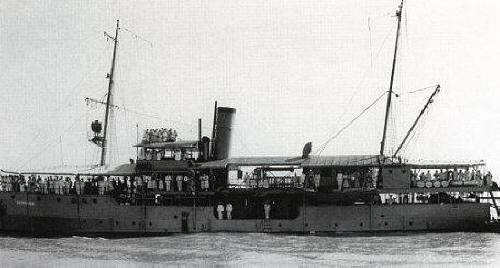

<i>Serdang</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Serdang Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Steel-hulled seagoing gunboats, intended for colonial service.

Modernizations

1921, Serdang: - 1 x 1 - 105/32; + mines

Naval service

Serdang was converted to minelayer in 1921, laid up into reserve in 1926. In 1932 - 1937 and 1939 - 1942 she served as torpedo repair ship and scuttled off Sourabaya 6.3.1942.



Many thanks to Wolfgang Stöhr for additional information on this page.
