JOHAN MAURITS VAN NASSAU frigate (1943)





Johan Maurits van Nassau Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Johan Maurits van Nassau (ex-Ribble) K251, 1945- JO1, 1950- F802 756 Simons, Renfrew, UK 12.1942 23.4.1943 6.1943 TS 1953, stricken 1959


Technical data


Displacement standard, t

1493

Displacement full, t

1994

Length, m

86.3 pp 91.8 oa

Breadth, m

11.2

Draught, m

3.89 deep load

No of shafts

2

Machinery

2 VTE, 2 Admiralty 3-drum boilers

Power, h. p.

5500

Max speed, kts

20

Fuel, t

oil 440

Armament

2 x 1 - 102/40 QF Mk XIX, 4 x 2 - 20/70 Oerlikon Mk II/IV, 2 x 1 - 20/70 Oerlikon Mk II/IV, 1 x 24 - 178 Hedgehog ASWRL, 8 DCT, 2 DCR (150)

Electronic equipment

 type 271, type 291 radars, type 144 sonar

Complement

140



Standard scale images


<i>Johan Maurits van Nassau </i>1943
Johan Maurits van Nassau 1943


Graphics

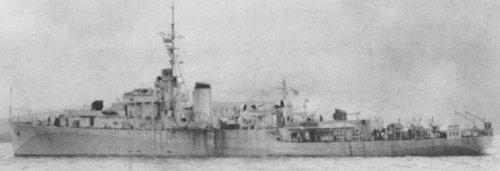

<i>Johan Maurits van Nassau</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Johan Maurits van Nassau Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

"River" type frigate, transferred to Dutch Navy before commission.

Modernizations

1947: - 2 x 1 - 102/40, type 271, type 291 radars, type 144 sonar; + 2 x 1 - 105/45 SK C/32, type 277P, type 284, type 294 radars, type 147F sonar

Naval service

Early 1945 Johan Maurits van Nassau was returned to the Great Britain, but after end of war she was redeemed by the Netherlands and transferred for fishery protection duties. In 1951-1953 the ship participated in war in Korea and then she was used as gunnery drill ship.



Many thanks to Wolfgang Stöhr for additional information on this page.
