De Zeven Provinciën 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
De Zeven Provinciën	F802		De Schelde, Vlissingen	1.9.1998	8.4.2000	26.4.2002	in service (2019)
Tromp	F803		De Schelde, Vlissingen	3.9.1999	7.4.2001	14.3.2003	in service (2019)
De Ruyter	F804		De Schelde, Vlissingen	1.9.2000	13.4.2002	22.4.2004	in service (2019)
Evertsen	F805		De Schelde, Vlissingen	6.9.2001	19.4.2003	10.6.2005	in service (2019)

Technical data

Displacement standard, t	4400
Displacement full, t	6050
Length, m	130.7 pp 144.2 oa
Breadth, m	18.8
Draught, m	5.19 mean hull
No of shafts	2
Machinery	CODOG: 2 Rolls-Royce Spey SM-1C gas turbines / 2 Werkspoor-Wärtsilä 16V26ST diesels
Power, h. p.	53040 / 13600
Max speed, kts	28
Fuel, t	gas turbine / diesel oil
Endurance, nm(kts)	5000(18)
Armament	2 x 4 Harpoon Block IC SSM (8 RGM-84F), 1 x 40 Standard SM-2MR Block IIIA SAM / 4x ESSM SAM (VLS, 32 RIM-66M + 32 RIM-162B), 1 x 1 - 127/54 OTO Melara Compact, 2 x 7 - 30/77 Goalkeeper, 2 x 1 - 20/85 GAM-B01, 6 x 1 - 7.6/90, 2 x 2 - 324 Mk 32 Mod. 9 TT (Mk 46 mod. 5), 1 helicopter (SH-14D Sea Lynx)
Electronic equipment	SMART-L, APAR, Scout, nav. radars, Mirador-FD, Sirius e/o systems, DSQS-24C, ALF sonars, Sabre ECM suite, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, SEWACO XI CCS
Complement	F802, 803: 182 F804, 805: 171

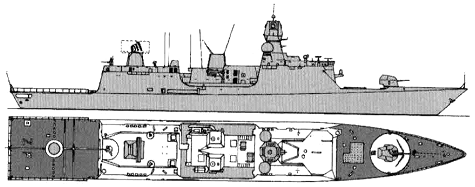

Standard scale images

Graphics

Project history

Were to have been a cooperative venture with Germany and Spain under an agreement signed in 1994, but the German ship design differs and Spain later withdrew. First two are designated LCF (Luchtverdedigings en Commando Fregat, or Air-Defense and Command Frigate) and were ordered in 1995. Authorization for a second pair of NLF (Nieuw Luchtverdedigings Fregat, or New Air-Defense Frigate) was granted by the parliament in 1996, and they were ordered in 1997.

Employ twin rudders with rudder roll stabilization. Ship's boats are rigid inflatables stowed behind bulwarks. Reduced radar and infrared signature measures have been extensively employed. Have six "autonomous internal zones" divided by PriMa flexible, watertight, blast- and fragmentation-resistant bulkheads. Each Mk 41 VLS cell can hold one Standard or four evolved Sea Sparrow missiles. Plans to acquire the Tomahawk land-attack cruise missile for the class were cancelled during 2007.

The first two were originally to have had twin 120-mm gunmounts recycled from the Tromp class (and before that aboard the destroyer Gelderland). The OTO Melara mounts for the first two ships were ordered in 1996 (with an option for two more) in order to take advantage of planned developments in U.S. 127-mm extended-range guidance munitions (ERGM); all four are refurbished ex-Canadian mountings from the Tribal class. The helicopters carry ASW and antiship weapons, and the magazines will stow up to 24 ASW torpedoes and 12 antiship missiles.

Modernizations

2004, all: - 2 x 1 - 20/85; + 2 x 1 - 12.7/90

2010, all: - 1 helicopter (SH-14D Sea Lynx); + 1 helicopter (NH 90)

Naval service

No significant events.
