BAREND BIESHEUVEL patrol ship (2001)
Barend Biesheuvel 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Barend Biesheuvel | Damen, Gorinchem | 8/2001 | in service (2019) |
Technical data
| Displacement standard, t | 1240 |
|---|---|
| Displacement full, t | |
| Length, m | 61.4 |
| Breadth, m | 11.0 |
| Draught, m | 3.80 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516BHD TA diesels |
| Power, h. p. | 4700 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Electronic equipment | 2x nav. radars |
| Complement | 20 |
Graphics

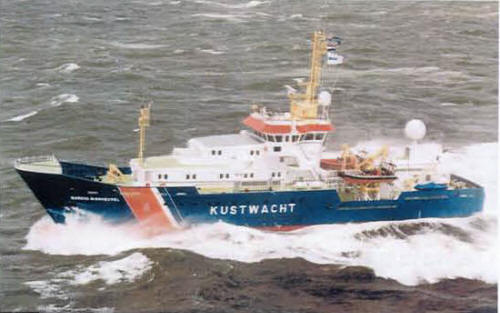

Barend Biesheuvel 2002
Project history
Patrol ship. Has 2 8m 35kts RIBs on board and 1 1.5t crane.
Modernizations
None.
Naval service
No significant events.
