TM22 motor torpedo boats (1942-1943)

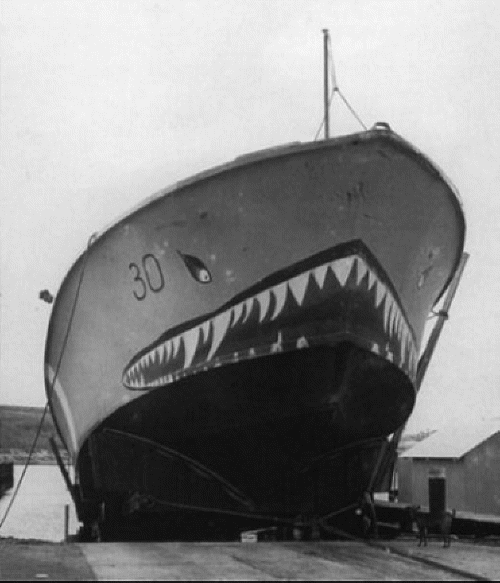

TM30 on slipway

Ships


Names Builders Commissioned Losses Transfers Discarding

TM22 - 25

TM26, 1944- PMB26

TM27 - 32

TM32 (ex-TM34)

TM33, 1944- PMB33

TM35 - 37

Canadian Power Boat, Montreal, Canada: TM22 - 29

Fyff`s SYd, New York, USA: TM30 - 37

1942: TM22 - 31

1943: TM32 (ex-TM34), 33

requisitioned by USA before commission 4.1943: TM32 (PT368), TM35 - 37 (PT369 - 371)

TM25 (27.2.1943), TM27 (6.7.1943), TM31 (2.9.1944)

None

1943: TM23

1944: TM24, 32 (ex-TM34)

1946: PMB26, TM28 - 30, PMB33

6/1947: TM22



Technical data


Displacement standard, t

32

Displacement full, t45
Length, m

21.3

Breadth, m

6.10

Draught, m

1.20

No of shafts

3

Machinery

3 Packard petrol engines

Power, h. p.

4200

Max speed, kts

48

Fuel, t

petrol

Endurance, nm(kts)

570(20)

Armament

2 x 2 - 12.7/90, 4 - 450 TT, 2 DCR (8)

Complement

12



Standard scale images


<i>PT368</i> 1943
PT368 1943


Graphics


<i>TM30</i> on slipway
TM30 on slipway


Project history

Ordered in 1941 to American and Canadian builders  for service in colonies. Repetition of TM51 type with more powerful motors. In the beginning of 1943 TM32 and 35-37 were requisitioned by Americans and commissioned by USN as PT368-371; then TM34 was renamed TM32.

Modernizations

None.

Naval service

Any MTB has not had time to enter service before fall of the Dutch East Indies, therefore they served mainly as aircraft rescue launches in Caribbean sea.

TM26 and 33 in 1944 were transferred to Australia where they were used as patrol boats PMB26 and 33 until discarding in May 1946.
