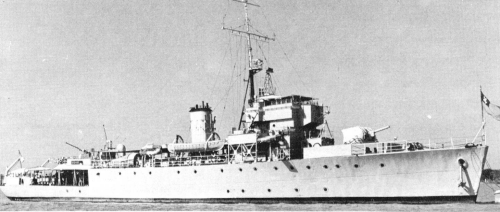

Yan Myo Aung 1964

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp.	Fate
ရန်မျိုးအောင် [Yan Myo Aung] (ex-Mariner)	M380		Port Arthur, Canada	8/1943	9.5.1945	5.1945 // 18.4.1958	stricken 1982

Technical data

Displacement standard, t	1040
Displacement full, t	1335
Length, m	68.6 pp 71.6 oa
Breadth, m	10.8
Draught, m	3.50
No of shafts	2
Machinery	2 VTE, 2 Admiralty 3-drum boilers
Power, h. p.	2000
Max speed, kts	16.5
Fuel, t	oil 230
Endurance, nm(kts)	4000(12)
Armament	1 x 1 - 102/45 CP Mk 2, 4 x 1 - 40/60 Mk 7, 4 DCT, 2 DCR, mechanical, magnetic, acoustic minesweeping gear, 16 mines
Electronic equipment	Decca 202 radar, Type 144 sonar
Complement	85 - 138

Standard scale images

Graphics

Project history

Former British Algerine class minesweeper, used mainly as patrol but fitted for minesweeping and minelaying.

Modernizations

None.

Naval service

No significant events.
