CAPITÁN DE NAVIO SEBASTIAN JOSÉ HOLZINGER offshore patrol vessels (1991-1994)
Felipe Berriozábal 2005
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Capitán de Navio Sebastián José Holzinger (ex-Uxmal), 1993- Sebastián José Holzinger | C01, 2001- P131 | Astimar, Salina Cruz | 1.6.1985 | 11.11.1985 | 1.5.1991 | in service (2019) | |
| Capitán de Navio Blas Godinez Brito (ex-Mitla), 1993- Blas Godinez | C02, 2001- P132 | Astimar, Tampico | 1.7.1985 | 22.3.1988 | 1.11.1991 | in service (2019) | |
| José María de la Vega (ex-Brigadier José María de la Vega Gonzales, ex-Peten) | C03, 2001- P133 | Astimar, Salina Cruz | 22.9.1986 | 1.6.1988 | 16.4.1994 | in service (2019) | |
| Felipe Berriozábal (ex-General Felipe Berriozábal, ex- Anahuac) | C04, 2001- P134 | Astimar, Tampico | 9.3.1988 | 17.10.1988 | 18.5.1994 | in service (2019) |
Technical data
| Displacement standard, t | 1080 |
|---|---|
| Displacement full, t | 1290 |
| Length, m | 70.0 pp 74.4 oa |
| Breadth, m | 10.5 |
| Draught, m | 3.40 max |
| No of shafts | 2 |
| Machinery | 2 MTU 20V956 TB92 diesels |
| Power, h. p. | 11700 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil 227 |
| Endurance, nm(kts) | 3800(18) |
| Armament | C01, 02: 1 x 2 - 40/60 Mk 1, 1 helicopter (BO-105CB) C03: 1 x 1 - 76/50 Mk 26, 1 helicopter (BO-105CB) C04: 1 x 1 - 57/70 Bofors SAK-57 Mk 2, 1 helicopter (BO-105CB) |
| Electronic equipment | SPS-64(v)6A, Kelvin Hughes radars, NA-18 e/o system |
| Complement | 75 + 16 passengers |
Standard scale images
Blas Godinez 2000
Graphics

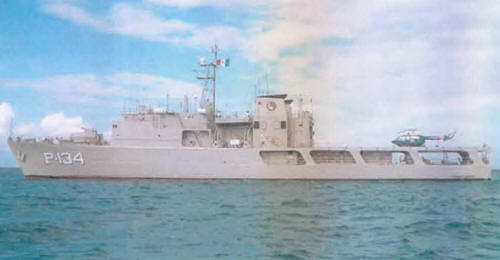

Felipe Berriozábal 2005
Project history
Type Aguila, improved Halcon. Program slowed down considerably due to financial problem. Used for EEZ patrol duties.
Modernizations
None.
Naval service
No significant events.
