QUETZALCÓATL destroyers (1945/1982)





Netzahualcóyotl 1995

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Quetzalcóatl (ex-Vogelgesang), 1993- Ilhuicamina, 2001- Quetzalcóatl E03, 1993- E10, 2001- D101   Bethlehem, Staten I, Port Richmond, USA 3.8.1944 15.1.1945 28.4.1945 // 24.2.1982 stricken 8.2002
Netzahualcóyotl (ex-Steinaker) E04, 1993- E11, 2001- D102   Bethlehem, Staten I, Port Richmond, USA 1.9.1944 13.2.1945 28.5.1945 // 24.2.1982 stricken 2013


Technical data


Displacement standard, t

2448

Displacement full, t

3528

Length, m

116.6 wl 119.0 oa

Breadth, m

12.5

Draught, m

4.45 hull 6.40 sonar

No of shafts

2

Machinery

2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers

Power, h. p.

60000

Max speed, kts

30

Fuel, t

oil 650

Endurance, nm(kts)

4000 (20)

Armament

1 х 8 ASROC ASuR (17 RUR-5), 2 x 2 - 127/38 Mk 38, 2 x 3 - 324 Mk 32 TT, helicopter deck

Electronic equipment

E03: LN-66, SPS-10, SPS-40B, Mk 25 radars, SQS-23 sonar, WLR-1 ECM suite

E04: LN-66, SPS-10, SPS-29, Mk 25 radars, SQS-23 sonar, WLR-1 ECM suite

Complement

275



Standard scale images

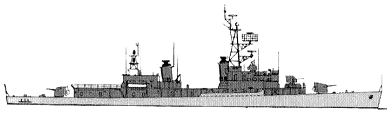

<i>Quetzalcóatl </i>1990
Quetzalcóatl 1990

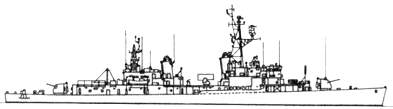

<i>Netzahualcóyotl </i>2000
Netzahualcóyotl 2000


Graphics


<i>Netzahualcóyotl </i>1995
Netzahualcóyotl 1995


Project history

Former USN Gearing FRAM I class destroyers. In 1990s both could make no more than 15kts due to boiler problems.

Modernizations

1980s, both: - LN-66 radar; + Kelvin Hughes 17/9 radar

1993, both: + 1 x 1 - 57/70 Bofors SAK57 Mk 2

1994, both: - 1 x 8 ASROC ASuR, 2 x 3 - 324 TT, SQS-23 sonar (sonar was aboard but no functional)

early 2000s, Netzahualcóyotl: - SPS-29 radar; + SPS-37 radar

2002, Netzahualcóyotl: - 1 x 1 - 57/70

Naval service

No significant events.
