CABO CORRIENTES patrol craft (1953/1990-1991)

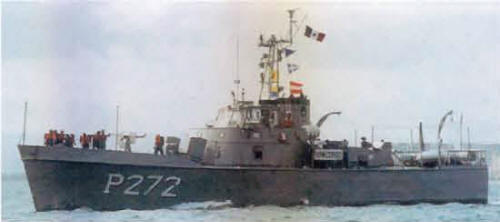

Cabo Corzo 2005

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Cabo Corrientes (ex-Jalisco, ex-Cape Carter, ex-WPB95309) P42, 2001- P271   USCG Yard, Curtis Bay, USA     7.12.1953 // 16.3.1990 in service (2019)
Cabo Corzo (ex-Nayarit, ex-Vanguard, ex-Cape Hedge, ex-WPB95311) P43, 2001- P272   USCG Yard, Curtis Bay, USA     21.12.1953 // 21.4.1990 in service (2019)
Cabo Catoche (ex-Cape Hatteras, ex-WPB95305) P44, 2001- P273   USCG Yard, Curtis Bay, USA     28.7.1953 // 18.3.1991 in service (2019)


Technical data


Displacement standard, t

87
Displacement full, t

105
Length, m

29.0
Breadth, m

5.80
Draught, m

1.83
No of shafts

2
Machinery

4 General Motors 16V 149TI diesels
Power, h. p.

2470
Max speed, kts

20
Fuel, t

diesel oil
Endurance, nm(kts)

1900(11.5)
Armament

1 x 1 - 20/70 Mk 10, 1 x 1 - 12.7/90
Electronic equipmentSPS-64(v)1 radar
Complement

15


Standard scale images


<i>Cabo Corrientes </i>2000
Cabo Corrientes 2000


Graphics


<i>Cabo Corzo </i>2005
Cabo Corzo 2005


Project history

Former USCG 'Cape' class boats.

Modernizations

None.

Naval service

No significant events.
