ROYAL MALAYSIAN NAVY (MALAYSIA)

ESCORTS

SRI KEDAH patrol craft (1963-1968)

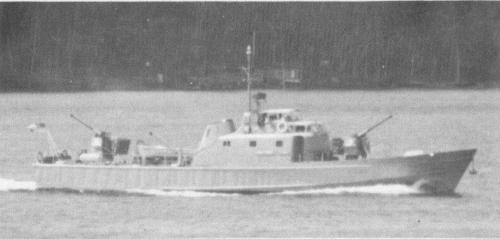

Kris 1975

Name No Builder Laid down Launched Comp Fate
Sri Kedah P3138 Vosper, Portsmouth, UK   4/6/1962 2/1963 stricken 1976
Sri Selangar P3139 Vosper, Portsmouth, UK   17/7/1962 3/1963 stricken 1996
Sri Perek P3140 Vosper, Portsmouth, UK   30/8/1962 6/1963 foundered 1/1984
Sri Pahang P3141 Vosper, Portsmouth, UK   15/10/1962 1963 stricken 1976
Sri Kelantan P3142 Vosper, Portsmouth, UK   8/1/1963 11/1963 stricken 1996
Sri Trengganu P3143 Vosper, Portsmouth, UK   12/12/1962 12/1963 stricken 1996
Sri Sabah, 2006- Labas P3144, 2006- 3137 Vosper, Portsmouth, UK   30/12/1963 9/1964 MMEA 2006, active service (2016)
Sri Sarawak, 2006- Sipadan P3145, 2006- 3131 Vosper, Portsmouth, UK   20/1/1964 9/1964 MMEA 2006, stricken 2012
Sri Negri Sembilan, 2006- Nyireh P3146, 2006- 3138 Vosper, Portsmouth, UK   17/9/1964 9/1964 MMEA 2006, active service (2016)
Sri Melaka, 2006- Rumbia P3147, 2006- 3144 Vosper, Portsmouth, UK   25/2/1964 11/1964 MMEA 2006, active service (2016)
Kris, 2006- Lang P3148, 1972- P34, 2006- 3132 Vosper, Portsmouth, UK   1/1/1966 3/1966 MMEA 2006, active service (2016)
Sundang, 2006- Segantang P3149, 1972- P36, 2006- 3133 Vosper, Portsmouth, UK   22/5/1966 11/1966 MMEA 2006, active service (2016)
Badek, 2006- Jarek P3150, 1972- P37, 2006- 3134 Vosper, Portsmouth, UK   8/5/1966 12/1966 MMEA 2006, active service (2016)
Renchong, 2006- Kuraman P3151, 1972- P38, 2006- 3139 Vosper, Portsmouth, UK   22/6/1966 1/1967 MMEA 2006, active service (2016)
Tombak, 2006- Siamil P3152, 1972- P39, 2006- 3140 Vosper, Portsmouth, UK   20/6/1966 3/1967 MMEA 2006, active service (2016)
Lembing, 2006- Ligitan P3153, 1972- P40, 2006- 3145 Vosper, Portsmouth, UK   22/8/1966 4/1967 MMEA 2006, active service (2016)
Serampang P3154, 1972- P41 Vosper, Portsmouth, UK   15/9/1966 5/1967 retired 1/2004
Panah, 2006- Kukup P3155, 1972- P42, 2006- 3135 Vosper, Portsmouth, UK   10/10/1966 7/1967 MMEA 2006, active service (2016)
Kerambit, 2006- Pemanggil P3156, 1972- P43, 2006- 3141 Vosper, Portsmouth, UK   20/11/1966 7/1967 MMEA 2006, active service (2016)
Beledau, 2006- Bidong P3157, 1972- P44, 2006- 3142 Vosper, Portsmouth, UK   11/1/1967 9/1967 MMEA 2006, active service (2016)
Kelewang, 2006- Sempadi P3158, 1972- P45, 2006- 3136 Vosper, Portsmouth, UK   31/1/1967 10/1967 MMEA 2006, active service (2016)
Rentaka, 2006- Satang P3159, 1972- P46, 2006- 3143 Vosper, Portsmouth, UK   15/3/1967 9/1967 MMEA 2006, active service (2016)
Sri Perlis P3160, 1972- P47 Vosper, Portsmouth, UK   26/5/1967 1/1968 in service (2016)
Sri Johor P3161, 1972- P49 Vosper, Portsmouth, UK   21/8/1967 2/1968 in service (2016)



Displacement standard, t

96

Displacement full, t

109

Length, m

31.4 oa 29.0 pp

Breadth, m

5.95

Draught, m

1.65

No of shafts

2

Machinery

2 Bristol-Siddeley or Maybach MD655/18 diesels

Power, h. p.

3550

Max speed, kts

27

Fuel, t

diesel oil

Endurance, nm(kts)

P3138-3143, 3148-3161: 1400(14)

P3144-3147: 1660(14)

Armament

2 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 7.6/90

Sensors

Decca 616 radar

Complement

22 - 23

Ship project history: Six patrol craft were ordered from Vosper, Portsmouth, in September 1961 for delivery in 1963; the next four were ordered in March 1963 for delivery in 1965, followed by fourteen more in 1965 for delivery in 1966-68. Various minor improvements have been made in each group but the basic design is the same - an all-welded hull with aluminium superstructure.

Modernizations: None.

Naval service: In 2006 almost all boats were transferred to Malaysian Maritime Enforcement Agency (MMEA).

Sri Sabah 1976

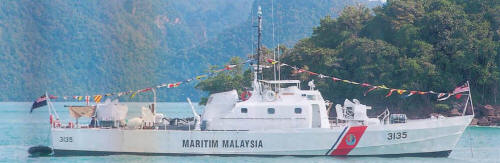

Kukup 2006



Ivan Gogin, 2016
